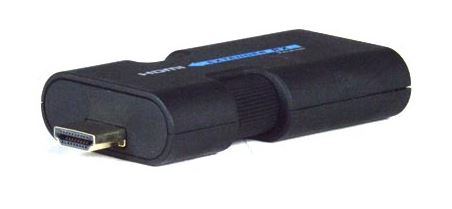

Low-Cost Mini HDMI Extender via CAT6/6a/7
ST-1C6-MINI-ULC

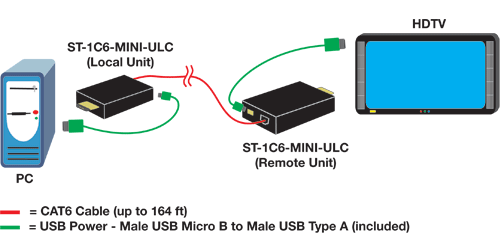

The XTENDEX Mini HDMI Extender transmits digital video and audio signals up to 164 feet (50 meters) using one CAT6/6a/7 cable. Each extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.
Product Features and Benefits
- Supports HDTV resolutions to 1080p.
- Transmits an HDMI signal over one CAT6/6a/7 cable.
- HDMI features supported: Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- HDCP compliant.
- Built-in default EDID table.
- Connect directly to source/display - no HDMI cable needed.
Package Includes
- One transmitter unit
- One receiver unit
- Two Male USB Type A to Male USB Micro cables
- User Manual
| Local Unit | (1)HDMI Connector Male; (1) RJ-45 Female; (1) USB Micro B for power |
| Remote Unit | |
| Resolution | 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz |
| Connection | (1)HDMI Connector Male; (1) RJ-45 Female; (1) USB Micro B for power |
| Power | |
| Type | 100 to 240 VAC @ 50/60Hz via AC |
| Input | 5VDC - Two 3 ft (0.92 m) Male USB Micro-B to Male USB Type A cables included. |
| Consumption | 2W each |
| Mechanical | |
| Dimensions(WxDxH) | 3.54 x 1.81 x 0.71 in (90 x 46 x 18 mm) |
| Weight | 1.13 lb (0.51 kg) |
| Approvals | CE, FCC, RoHS |
| Warranty | Two Years |
