NTI XTENDEX PS/2 KVM Extender via CAT5

ST-C5KVM-300I

$465.00

Discontinued
For upgrade or replacement options: Contact Us

The NTI ST-C5KVM-300I is a KVM extender that provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300 feet using CAT5/5e/6 UTP cable.

*Note: The ST-C5KVM-300I includes the internal power supply.

NTI ST-C5KVM-300I Features:

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Optional external surge protection available.
  • Available with optional stereo audio.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Use in-house CAT5 wiring to locate a keyboard, monitor and mouse remotely.
  • Available with optional internal power supply - eliminates dangling power adapter.
  • Optional VESA mounting bracket is available for mounting the local or remote unit to the back of a flat panel monitor.


NTI ST-C5KVM-300I Details:

Local Unit:

Host Connection:

  • Supports a PC, SUN FireŠ V20z, or NTI Switch.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Linux, and FreeBSD.
  • Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
  • Optional stereo audio support - 3.5mm stereo plug.

Local Access:

  • Crisp and clear 1920x1440 video resolution.
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • NTI recommends using identical keyboards and mice at local and remote units.
  • Optional stereo audio support - 3.5mm stereo jack.

Remote Unit:

  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Optional 3.5mm stereo audio connection.

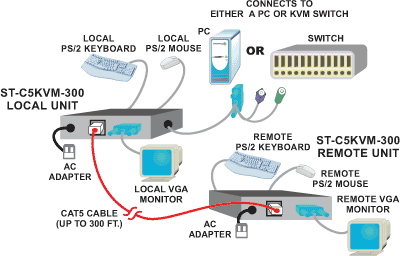

NTI ST-C5KVM-300I Application Diagram

NTI ST-C5KVM-300I Application Diagram

 NTI ST-C5KVM-300I Specifications:

Mechanical
Width 5.0 in. (12.7 cm.)
Height 1.2 in. (3 cm.)
Depth 3.1 in. (7.9 cm.)
Environmental
Operating Temperature 32°F to 100°F (0°C to 38°C).
Storage Temperature -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity 17 to 90% non-condensing RH.
Power 110 or 220 VAC at 50 or 60 Hz via IEC connector.
Video Quality Adjustment Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually.
Regulatory Approvals CE  and ROHS
