NTI Transparent USB Extender with VGA Video: Extend to 200 Feet

ST-C5USBVT

$410.00$377.01
Save $32.99
FREE Shipping on orders over $100

The NTI XTENDEX ST-C5USBVT Transparent VGA USB Extender extends four USB devices and a VGA monitor up to 200 feet. The ST-C5USBVT USB extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to four USB devices and a monitor.

NTI XTENDEX ST-C5USBVT Features and Benefits:

  • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
  • Extend devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports local and remote VGA monitors.
  • Supports resolutions to 2048x1536.
  • DDC2B support for local or remote monitor.
  • Compliant with USB 2.0 (low/full speed) standards.
  • Supports Plug-n-Play specification.
  • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
  • Available options: dual video, dual video + two-way audio (support for speakers and microphone) + RS232.
    • ST-C5USBVT: Transmits signals over one CATx cable.
    • ST-C5USB2VT: Transmits signals over two CATx cables.
    • ST-C5USB2V2ARST: Transmits signals over two CATx cables.

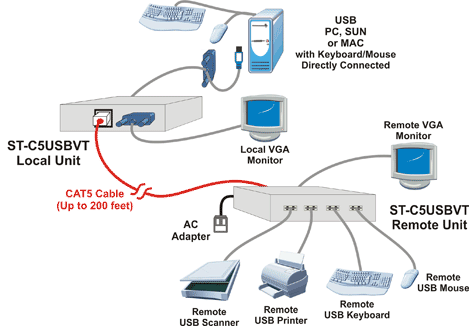

NTI XTENDEX ST-C5USBVT  Diagram
NTI XTENDEX Transparent USB Extender with VGA Video: Extend to 200 Feet Diagram
(ST-C5USBVT depicted here)

NTI XTENDEX ST-C5USBVT Package Content:

  • 1 ST-C5USBVT Local Unit
  • 1 ST-C5USBVT Remote Unit
  • 1 USB2-AB-1M-5T 1m USB Type A male to USB Type B male Cable
  • 1 VEXT-3 15HD Male to 15HD Female 3 ft. Cable
  • 1 CD containing User Manual

NTI XTENDEX ST-C5USBVT Specifications:

Mechanical
Width5.1 in.
Height1.2 in.
Depth3.1 in.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-20 - 140°F (-30 to 60°C)
Operating Humidity0 to 90% non-condensing RH
Power Consumption100V-240VAC @ 50/60Hz-5VDC/3.0A
Video
Video CompatibilityQXGA, SVGA, XGA, VGA
Video CouplingDC
Video ConnectorsHD15 to CPU; HD15 to monitors
Sync Types SupportedSeparate and composite TTL level
Video Maximum I/O Levels1.45Vp-p
USB
USB to Host CPUUSB Type B
USB to DeviceUSB Type A
USB output power5V, 1.4A for 4ports
General
Interconnect CableCAT5/5e/6/7 Solid/Stranded UTP/STP EIA/TIA 568 B wiring
Input Impedance75 Ohms
Output Impedance75 Ohms
Input Horzontal Frequency Range15kHz to 150 Hz
Input Vertical Frequency Range30 Hz to 150 Hz
ApprovalsRoHS, CE
Question: What is the combined weight of this range extender project? Also, what is the power consumption when powered on, but with no USB or VGA devices connected, and what is the power consumption of this range extender at full load (rated 1.4A to 4 USB ports and 1 VGA port according to specs)?
Answer: We have just heard back from our manufacturer and here is the info that they reported to us.

For power consumption:
Local-1.75W with a 2.5W max
Remote-1.45W w/o devices and 6.95W max

NTI did not report a weight to us, but the shipping weight of the product is around 6 lbs, exclusive of any cabling.

Question: I need a power supply for the ST-C5USBVT. Do you have these available?
Answer: Thank you for your inquiry. Power supplies for this unit are available for purchase. A member of our sales team will e-mail you with a quote.

Question: Can we purchase a replacement power adaptor for NTI ST-C5USBVT?
Answer: Thank you for your inquiry. Yes the Replacement power supply for ST-C5USBVT is available. To order, please contact your KVM Switches Online representative by calling 1-877-586-6654 or by initiating an Online Chat through the link near the top of the page.

Question: I need (2) power supplies for the ST-C5USBVT. Do you have these available?
Answer: Thank you for you inquiry. Please contact your KVM Switches Online representative directly at 1-877-586-6654 or via our online chat feature for availability.
