NTIST-C5USB2V2ARST USB Range Extender w/ Remote & Local Unit

ST-C5USB2V2ARST

$705.00$648.28
Save $56.72
FREE Shipping on orders over $100

The NTI ST-C5USB2V2ARST is a transparent VGA USB Extender kit that extends four USB devices and a VGA monitor up to 200 feet. Each ST-C5USB2V2ARST extender kit consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to four USB devices and a monitor. (Required CAT5e/6/7 cable not included and must be purchased separately.)

NTI ST-C5USB2V2ARST Features:

  • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
  • Extends devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports local and remote VGA monitors.
  • Supports resolutions to 2048x1536.
  • DDC2B support for local or remote monitor.
  • Compliant with USB 1.1 (low/full speed) standards.
  • Supports Plug-n-Play specification.
  • Available options: dual video, dual video + two-way audio (support for speakers and microphone) + RS232.
    • ST-C5USBVT: Transmits signals over one CATx cable (sold separately).
    • ST-C5USB2VT: Transmits signals over two CATx cables (sold separately).
    • ST-C5USB2V2ARST: Transmits signals over two CATx cables (sold separately).

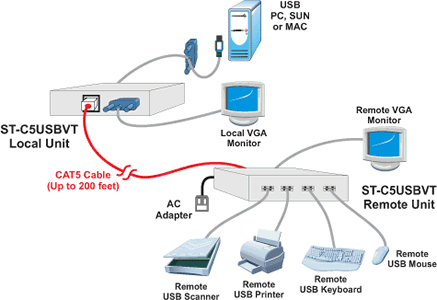

NTI ST-C5USB2V2ARST Application Diagram

 NTI ST-C5USB2V2ARST Application Diagram

 NTI ST-C5USB2V2ARST Specifications:

Mechanical
Width 5.1 in. (13 cm.)
Height 1.7 in. (4.3 cm.)
Depth 3.1 in. (7.9 cm.)
Local Unit
Host Connection Supports USB computers (PC, SUN, and MAC) with VGA video.
two male 15-pin HD, one female USB Type B, two female 3.5mm stereo, and one female RJ45 EIA-232 serial port connectors.
Local Access Crisp and clear 2048x1536 video resolution.
two female 15-pin HD connectors for local dual VGA monitors.
Remote Unit two female 15-pin HD, four female USB Type A, two female 3.5mm stereo, and one female RJ45 EIA-232 serial port connectors.
Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
Supports resolution to 2048x1536
Video quality adjustment for different lengths of CATx cable is done manually.
Power
Local/Remote Unit 100 to 240 VAC at 50 or 60 Hz via AC adapter.
The combined current consumption of the connected devices cannot exceed 1.4A
Cables one 3-foot VGA + USB, one 3-foot VGA, two 3.5mm audio, and one RJ45 EIA-232 serial cables included.
  Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
Operating temperature 32°F to 100°F (0°C to 38°C).
Storage temperature -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity 17 to 90% non-condensing RH.
Regulatory Approvals CE and RoHS
