DVI/Audio Cat 5 Extender Wall Plate (1920 x 1200@40m)

VE606

$194.00$144.28
Save $49.72
FREE Shipping on orders over $100

The VE606 DVI Over Cat 5 Extender Wall Plate extends DVI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.

The VE606 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE606's compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Product Features

  • Uses two Cat 5e cables to connect the local and remote units - one to transmit video and audio; and another for power*
  • Remotely powered from either the Transmitter or Receiver side**
  • Extends the distance between DVI source and DVI display
  • Superior video quality - up to 1080p@60Hz (40m), 1080i@60Hz (60m)
  • 8 segment equalization adjustment switch optimizes display quality
  • Supports wide screen formats
  • Supports hot-plugging
  • Decora type design is easily configurable to fit various wall plates
  • LED indication of power sources / connection status
  • Supports stereo audio
  • Built-in 8KV/15KV ESD protection
  • Easy installation
  • Wall mountable type for a neat and cleaner installation
  • Plug-and-play - no software installation required

Package Includes

  • 1x VE606T DVI Over Cat 5 Extender Wall Plate
  • 1x VE606R DVI Over Cat 5 Extender Wall Plate
  • 1x Terminal Block Connector
  • 1x Power Adapter
  • 1x User Instructions

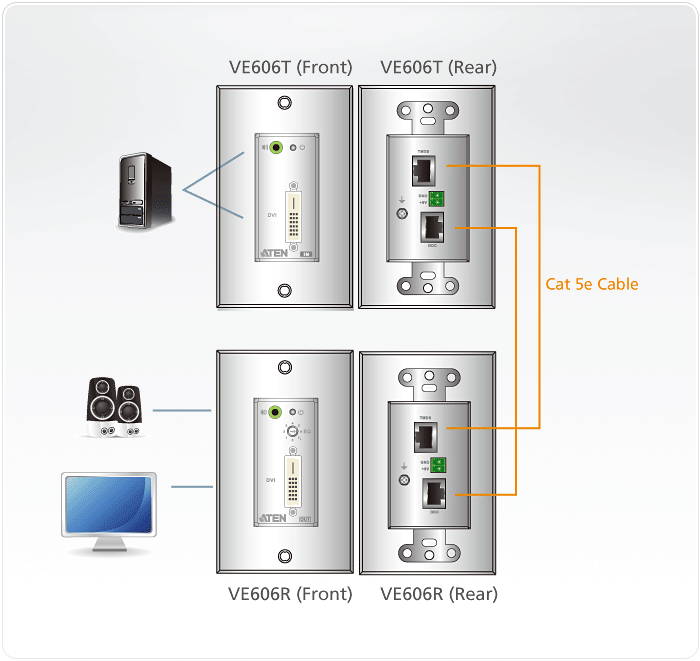

Product Use Diagram

Product Specifications

Video Input
InterfacesVE606R: N/A
VE606T: 1 x DVI-D Female
ImpedanceVE606R: N/A
VE606T: 100Ω
Video Output
InterfacesVE606R: 1 x DVI-D Female
VE606T: N/A
ImpedanceVE606R: 100Ω
VE606T: N/A
Video
Max Data RateVE606R: 6.75 Gbps (2.25 Gbps Per Lane)
VE606T: 6.75 Gbps (2.25 Gbps Per Lane)
Max Pixel ClockVE606R: 225 MHz
VE606T: 225 MHz
ComplianceVE606R: HDCP Compatible
VE606T: HDCP Compatible
Max Resolutions/DistanceVE606R: Up to 1920 x 1200@40m; 1280 x 1024@60m
VE606T: Up to 1920 x 1200@40m; 1280 x 1024@60m
Audio
InputVE606R: N/A
VE606T: 1 x Mini Stereo Jack Female
OutputVE606R: 1 x Mini Stereo Jack Female
VE606T: N/A
Power
ConnectorsVE606R: 1 x Terminal Block
VE606T: 1 x Terminal Block
ConsumptionVE606R: 9V DC, 2.9W
VE606T: 9V DC, 2.9W
Environmental
Operating TemperatureVE606R: 32°-104°F (0°-40°C)
VE606T: 32°-104°F (0°-40°C)
Storage TemperatureVE606R: -4°-140°F (-20°-60°C)
VE606T: -4°-140°F (-20°-60°C)
HumidityVE606R: 0-80% RH, Non-Condensing
VE606T: 0-80% RH, Non-Condensing
Physical Properties
HousingVE606R: Metal
VE606T: Metal
WeightVE606R: 0.4 lb (0.18 kg)
VE606T: 0.4 lb (0.18 kg)
Dimensions (L x W x H)VE606R: 4.1 x 1.75 x 1.71 in. (10.41 x 4.44 x 4.34 cm)
VE606T: 4.1 x 1.75 x 1.71 in. (10.41 x 4.44 x 4.34 cm)
UPC / EAN Barcode icon
UPC 672792004650
EAN 0672792004650
