4-Port VGA Input Board Module


FREE Shipping on orders over $100

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn't need to be powered off when the board is changed.


  • Connects up to 4 VGA or Component inputs
  • Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
  • Hot-swappable design for easy integration of I/O boards
  • Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility

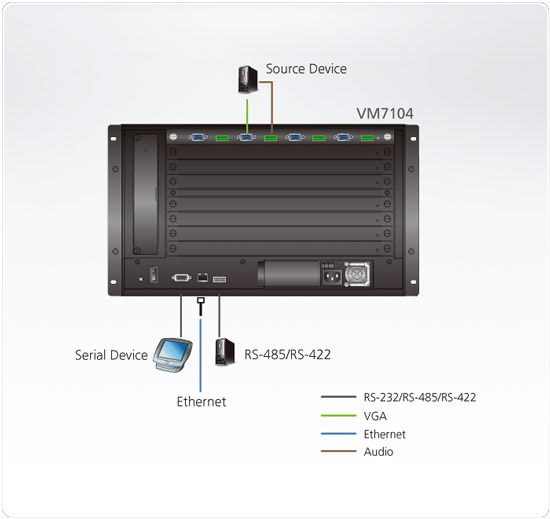

VM7104 Application Diagram



Width 9.4  in. (23.8 mm.)
Depth13.9 in. (35.2 mm.)
Height .9  in. (2.28 mm.)
Weight 1.23 lbs. (0.56 kg.)
Operating Temperature0°C to 40°C
Storage Temperature-20°C to -60°C
Humidity0-80% RH non-condensing
Power 7.1 W
Video Output
Interface4 x HDB-15 VGA Female (Blue)
Impedance75 Ώ
Max. pixel clock340 MHz
Max ResolutionUp to 1920 x 1200
Max Distance100 m (Cat 6a)
Audio4 x Captive Screw Connectors, 5 pole * Audio signal type: stereo, balanced/ unbalanced.
