4-Port HDBaseT Input Board Module

VM7514

$2,500.00$1,809.77
Save $690.23
FREE Shipping on orders over $100

The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections

Features:

  • Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • HDBaseT Connectivity - extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
  • HDBaseT Anti-jamming - resists signal interference during video transmission using HDBaseT technology
  • Bi-directional IR channel - IR transmission is processed one direction at a time
  • Hot-swappable design for easy integration of I/O boards

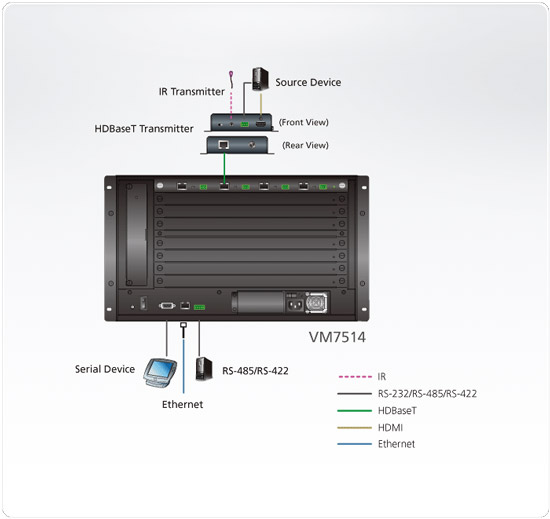

VM7514 Application Diagram



Specifications:

Mechanical
Width 9.4  in. (23.7 mm.)
Depth13.9 in. (35.2 mm.)
Height .9  in. (2.25 mm.)
Weight 1.41 lbs. (0.64 kg.)
Environmental
Operating Temperature0°C to 40°C
Storage Temperature-20°C to -60°C
Humidity0-80% RH non-condensing
Power 24.5 W
Video Output
Interface4 x RJ-45 Female (Silver)
Impedance100 Ώ
Max. data rate10.2 Gbps (3.4 Gbps per lane)
Max. pixel clock340 MHz
ComplianceHDBaseT, HDCP 1.4 compatible Consumer Electronics Control (CEC)
Max ResolutionUp to 4K@60 Hz (4:2:0)
Max Distance100 m (Cat 6a)
Control
RS-2324 x Captive Screw Connectors, 3 pole
IR4 x Mini Stereo Jack Female (Black)
