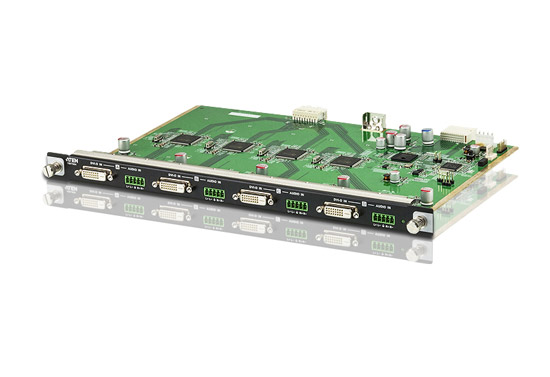

4-Port DVI Input Board Module

VM7604

$1,213.00$878.07
Save $334.93
FREE Shipping on orders over $100

The VM7604 4-Port DVI Input Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN's Modular Matrix Switch.

Features:

  • Superior video quality - up to 1920 x 1200 @ 60Hz
  • HDCP 1.4 Compatible
  • Built-in scaler on each output port to support the scaling function for different video Resolutions
  • Consumer Electronics Control (CEC) support
  • EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display
  • Built-in EDID wizard - provides an easy way to customized EDID settings
  • Hot-swappable design for easy integration of I/O boards
  • Audio-enabled

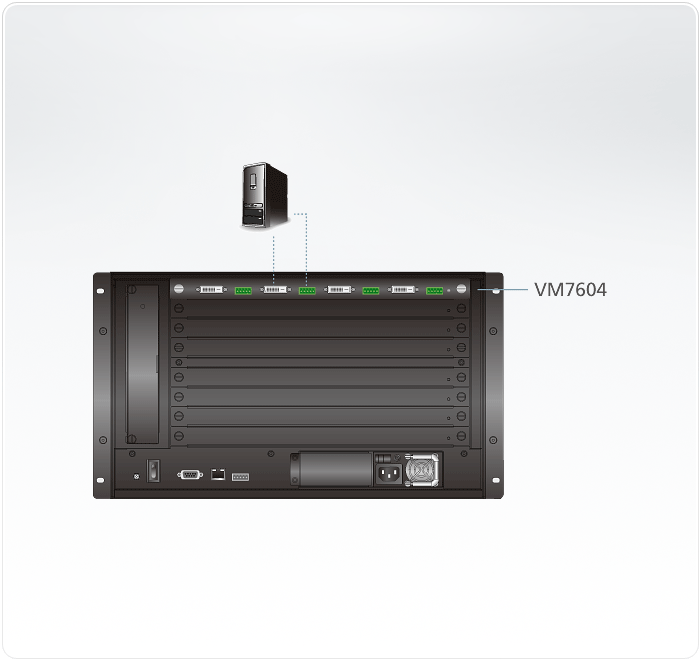

vm7604 diagram



Specifications:

Mechanical
Width 9.4  in. (23.8 mm.)
Depth13.9 in. (35.2 mm.)
Height .9  in. (2.28 mm.)
Weight1.2  lbs. (.55 kg)
Environmental
Operating Temperature0°C to 40°C
Storage Temperature-20°C to -60°C
Humidity0-80% RH non-condensing
Power DC5V, 10.62W
Connection
DVI Out4 x DVI-D Female (White)
Audio Out 4 x captive screw connector, 5 pole
UPC / EAN Barcode icon
UPC 672792005350
EAN 0672792005350
