Adder Cat 6 KVM Extender (Dual Access) w/ Audio and RS232

X2-DA-GOLD/P-US

$875.00$787.50
Save $87.50

Discontinued
For upgrade or replacement options: Contact Us

Access: X2 Gold Dual Access - Local Pass-through
Audio: Yes

The AdderLink X2-Gold Dual Access extends high quality video, keyboard, mouse, digital audio and transparent RS232 up to 300m/1000ft over Category 5 or higher cable while providing KVM and audio access at the computer for local as well as remote control. The X2-DA-Gold offers increased distance over which video can be transmitted and the very high resolutions that can be achieved at these distances. This CAT5 KVM extender can achieve resolutions of 1600 x 1200 at 200m/650ft and 1280x1024 at 300m/1000ft.

The X2-Gold Dual Access supports high fidelity bi-directional stereo audio and audio signals are transmitted digitally using 16 bit, 44.1kHz sampling to ensure a low noise level. Integral electronic DeSkew is also provided to compensate for any color skew effects that may be introduced by long CATx cables, achieving crystal clear video, even at longer distances. For maximum convenience all video adjustments may be simply made using the keyboard.

X2 extenders may be desk/shelf mounted or rack mounted in the popular X-Series rack mount system. This system enables 16 units (transmitters or receivers) to be fitted neatly into 2U of rack space to give industry-leading rack densities and provide a modular, flexible and manageable extender solution. The range of complementary X-Series modules enables systems to be constructed to precisely match your requirements.

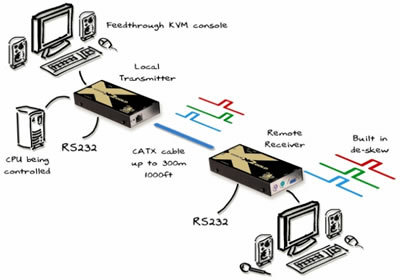

AdderLink X2-DA-Gold Dual Access Extender Application Diagram
AdderLink X2-DA-Gold Dual Access Extender Diagram

AdderLink X2-Gold CAT5 Extender Diagram
AdderLink X2-Gold CAT5 Extender Diagram

Adder X2-DA-Gold Features

  • Extends KVM and transparent RS232 across a single CATx cable
  • Video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
  • Fully transparent RS232 interface enables a wide range of serial devices to be connected
  • Integrated state of the art 300MHz DeSkew circuit (up to 62ns DeSkew with 2ns granularity)
  • Use stand alone or rackmount 16 modules across 2U
  • Advanced spike suppression circuits for reliability in noisy applications
  • Flash upgradeability enables future enhancements
  • Supports DDC signaling to ensure optimal video card setup

Adder X2-Gold Transmitter Rear View
Adder X2-Gold-DA Transmitter Back View

Adder X2-DA-Gold Package Includes

Adder X2-DA-Gold-US Package Includes

  • (1) X2-DA-Gold Local (computer-end) unit
  • (1) X2-Gold Remote (KVM console-end) unit
  • (1) 6ft / 2 meter VGA, PS/2 & Audio computer interface cable
  • (1) Computer serial interface cable
  • (1) IEC style power supply and power cord
  • (1) Safety and installation leaflet
  • (1) CD manual
  • (8) Stick on rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

X2-Gold DA Resources

Adder X2-DA-Gold Manual Screenshot Adder X2-DA-Gold Datasheet (PDF)
Adder X2-DA-Gold Manual (PDF)

Adder X2-DA-Gold Specifications

Mechanical Local Unit Remote Unit
Height 1 in. (26 mm.) 1 in. (26 mm.)
Width 6.7 in. (172 mm.) 6.7 in. (172 mm.)
Depth 3.1 in. (80 mm.) 2.9 in. (75 mm.)
Rack Space 5 units fit into 2U of rack space 16 units fit into 2U of rack space
Environmental
Temperature Tolerance 0-40°C (32 to 104°F)
Humidity Tolerance 5 to 60% non condensing
Power
Operating Voltage 100-240VAC
Power Frequency 50-60Hz
Usage 5VDC at 500mA
Connectors
Computers 1 x 25-way female N/A
CATx cable 1 x RJ45 1 x RJ45
Serial 1 x DB9 1 x DB9
Keyboard 1 x purple 6-pin mini-DIN female 1 x purple 6-pin mini-DIN female
Mouse 1 x green 6-pin mini-DIN female 1 x green 6-pin mini-DIN female
Monitor 1 x blue 15-pin high-density D-type female 1 x blue 15-pin high-density D-type female
Power adapter 2.5mm DC jack optional power adapter (only required for video only applications) 2.5mm DC jack
Compatibility
Computer/KVM switch Compatible with desktop, rack mount and laptop PCs with PS/2 keyboard and mouse connections
Operating system Compatible with all major operating systems including DOS; OS/2; UNIX; MS Windows 9x, NT, 2000, XP;NetWare and RS6000
Keyboard Supports PS/2 style keyboards with 6-pin mini-DIN connectors
Mouse Supports a wide range of PS/2 style 2 button, 3 button, wheel, IntelliMouse (3 button with wheel), IntelliMouse Explorer (5 button with wheel) and other mice that support the Microsoft  mouse signaling protocols
RS232 Transparent serial port operation ensures wide device compatibility without the need to configure baud rates or protocols on the X2 to match your equipment.

Adder X2-DA-GOLD/P-US is also known as X2-DA-GOLD, X2-DA-GOLD-US, and X2-DA-GOLD/P.
