The Adder X200A/R-US is a USB keyboard, video and mouse KVM receiver with 44.1kHz digital stereo audio support for two computers. This USB KVM receiver has been designed for use in applications where up to two computers can have their keyboard, video and mouse control extended up to 300 m (1000 ft.) across CAT5 or higher UTP cable. The AdderLink X200 provides absolute real time keyboard and mouse performance along with hi-definition, hi-resolution video over a VGA interface. The AdderLink X200 receiver can also be used as a remote user station for the AdderView CATx range of KVM switches.

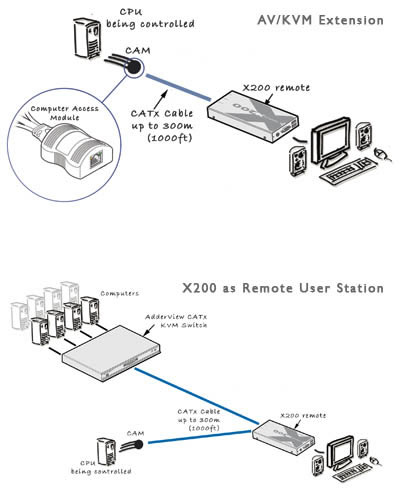

Adder X200A/R Application Diagram
AdderLink X200A/R Diagram

x200-usb/p-us
AdderLink X200 Diagram

  • Compact KVM extender receiver, up to 650 ft (200 m)
  • Transparent USB, VGA video and stereo audio over single CATx wire
  • High video quality up to 1920 x 1200
  • Finely adjustable video compensation
  • CD quality stereo audio
  • 2-Port integrated KVM switch
  • 2-port USB 2.0 hub at receiver

Adder X200A/R Receiver Front & Rear View
Adder X200A/R Receiver Front & Back View

AdderLink X200A/R-US Features & Benefits

  • Video performance
    Industry leading resolutions of:
    1920 x 1200 to 50 m (165 ft.)
    1600 x 1200 to 200 m (650 ft.)
    1280 x 1024 to 300 m (1000 ft.)
  • Video compensation
    The AdderLink X200 applies 128 steps of signal compensation enabling fine picture adjustments.
  • Brightness control
    The AdderLink X200 offers its own brightness correction to ensure images are crisp, clear and bright.
  • Integrated De-Skew
    The AdderLink X200 AS/R model has integrated skew correction with a 300MHz bandwidth (1/4
    of a pixel movement at 1600 x 1200 resolution). This removes the video skew issues that can be caused by longer CATx cables.
  • Two port integrated KVM switch
    Each receiver is fitted with two ports to enable connection to a local and remote computer, or two remote computers. The user can quickly select between these ports using keyboard hotkeys or mouse control. Individual video brightness, compensation and skew settings can be applied to each connection.
  • Flexible system configuration
    Each receiver may be connected to one or two USB, PS/2 or Sun style computer access modules. Furthermore, the X200 receiver unit may be used as the remote user station for any Adder CATx KVM switch.
  • Emulated DDC
    Unless an extender actively supports DDC some well known high performance video cards cannot be used at high resolutions. The AdderLink X200 fully supports DDC.
  • Digital audio
    44.1kHz digital stereo audio delivers high fidelity audio for speakers.

X200A/R-US Package Contents

Adder X200A/R Package Contents

  • (1) X200A/R Remote Receiver
  • (1) PSU-IEC-5VDC-2.5A Power adapter with US power cord
  • (1) CD-Rom
  • (4) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Adder X200A/R-US Specifications

Mechanical
Height 6.8 in. / 172 mm.
Width 1 in. / 26mm.
Depth 3 in. / 75mm.
Weight 1 lb / 430g
O/S Compatibility All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, MAc OS, NetWare etc.
Power Supply 100-240VAC 50/60Hz
Supported Hardware
Computers RJ45
Monitor HDD-15
Peripherals USB type A
Audio 3.5 mm jack
Standards
Approved Agency CE, FCC
