Adder AV extender receiver with DeSkew

ALAV101R-US

$295.00$265.50
Save $29.50
Receiver: Receiver w/ Deskew
FREE Shipping on orders over $100

The AdderLink AV Series ALAV101R receiver with integrated skew compensation delivers high video resolutions and quality audio up to 300m/1000 feet using standard CATx cable (x=5,5e,6,7). Designed for use in Digital Signage applications, the design of this extender allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision.

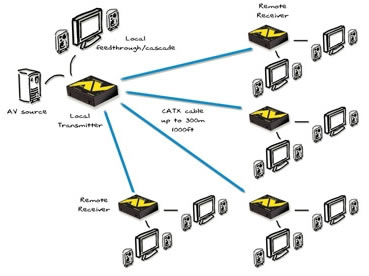

Adder AV-Series KVM Extender System Diagram
Adder AV-Series KVM Extender System Diagram

Adder ALAV101R Features

  • Duplicates input from transmitter allowing for 2 video and 2 audio outputs
  • Integrated skew adjustment allowing the receiver to be located further from the transmitter and/or cope with higher video resolutions
  • Can be used as a receiver up to 300m from AdderLink AV 100T or AdderLink AV 104T transmitters
  • Has local cascade port allowing for other receivers to be cascaded from the original receiver
  • Extends video and audio across a single CATx cable
  • Extra fine video quality at resolutions up to 1600 x 1200 at 200m and 1280 x 1024 at 300m
  • High fidelity click less digital audio (16bit, 44.1 kHz, stereo)
  • Independent sharpness and brightness control
  • DDC support
  • Feed through / cascade port at transmitter
  • Dual video and audio outputs at receiver
  • Use stand alone or rack mount 16 modules across 3U
  • Advanced spike suppression circuits for reliability in 'noisy' installations
  • All metal construction
  • Power / video indication confirm correct operation
  • Adjustable cable equalization amplifiers
  • Audio transmitted as digital signals to ensure high fidelity and low noise levels

ALAV101R-US Package Includes

Adder ALAV101R Package Contents

  • (1) ALAV101R Remote (Receiver) Unit
  • (1) PSU-ALAV-IEC IEC -style power supply and power cord
  • (4) Stick on rubber feet
  • (1) CD with skew test pattern and documentation
  • (1) 2-Year Limited Warranty & Lifetime Support

Note: the rack panels are not included and need to be purchased separately as required.

AV 100 Series Resources

Adder ALAV100 Manual Screenshot Adder ALAV100 Datasheet (PDF)
Adder ALAV100 Manual (PDF)

Brochures
ADDER Extension & Digital Signage (PDF)


Adder ALAV101R Specifications

Mechanical
Height 0.98 in. (25 mm.)
Width 3.8 in. (98 mm.)
Depth 3.7 in. (95 mm.)
Environmental
Temperature Tolerance 0-40°C (32 to 104°F)
Humidity Tolerance 5 to 60% non-condensing
Power
Operating Voltage 100-240VAC
Power Frequency 50-60Hz
Usage 5VDC at 500mA
Video Resolutions
1600 x 1280 up to 200 meters/650 feet
1280 x 1024 up to 300 meters/1000 feet
Extension
Distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7)
Technology Differential analogue signaling for video signals
Connectors
Video output 2 x blue 15-pin high-density D-type female
Audio output 2 x light green 3.5mm audio jack
CATx cable 2 x RJ45
Power adapter 2.5mm DC jack
Approvals FCC class A, CE marked
