Aten Slideaway Rackmount LCD w/ 16 Port KVMP Switch
CL5716M
Save $336.20
Download the
Aten CL5716M Manual (PDF)
The Aten CL5716M Slideaway LCD with 16 port KVMP Switch is an integrated LCD console and keyboard, video, and mouse (KVM) switch that offers secure access to 16 attached computers and mounts in only 1U of rack space. It features independently retractable 17" LCD monitor and keyboard with built-in touchpad.Aten CL5716M Manual (PDF)
The CL5716M supports either PS/2 or USB servers, and for added convenience an external USB mouse. A single CL5716 can control up to16 computers, and as many as 31 additional CS1708A / CS1716A KVM switches can be daisy chained together, for a maximum of 512 computers being controlled from a single console. The CL5716M incorporates a single USB hub for sharing USB devices on a one at a time basis among first tier servers, this allows updates, and software installations to be performed from the common console, no need to connect an external drive to each server, or interfere with your network traffic.

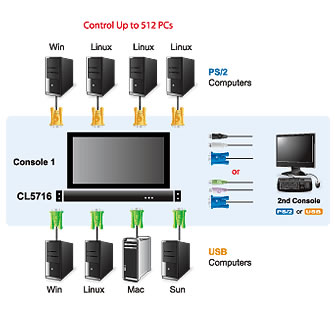

Aten CL5716M Application Diagram
Aten CL5716M Features:
- Space saving technology - up to two consoles (one bus) control up to 8/16 computers
- Extra console port - manage computers in the LCD KVM switch from an external console
- Dual interface - supports PS/2 and USB keyboards and mice in the KVM Ports
- Supports external USB mouse
- USB peripheral support for attached computers
- Convenient station and port selectors, each with two 7-segment LED displays
- Dedicated Hotkey Mode and OSD Invocation Keys
- Convenient computer selection via mouse-driven OSD
- Console lock - locks the console draw to remain securely locked away when not in use
- Daisy chain up to 31 additional KVM switches to control up to 256 computers
- No software required
- Hot pluggable - add or remove computers without powering down the switch
- OSD port list automatically expands when new stations are added
- Auto Scan Mode enables continuous monitoring of user-selected computers
- Security - Administrator/User password authorization for enhanced security protection;
- Two level password security - only authorized users can view and control computers
- OSD screen automatically adjusts to resolution changes
- Supports Windows, Sun, Linux, Mac, Unix, Netware, AIX (RS6000), and DOS 6.2 and later
- Standard 105-key keyboard
- Video resolutions up to 1280 x 1024@ 75Hz.
- Upgradeable firmware - simultaneously upgrade the firmware for all KVM switches on the bus
Package Includes:
- 1x CL5716 KVMP Switch with standard Rack Mounting Kit
- 2x Custom KVM Cable Sets
- 1x PS/2, 1.8m long
- 1x USB KVM cable, 1.8m long
- 1x 5-in-1 console cable
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x Grounding Wire
- 1x User Manual
- 1x Quick Start Guide
Aten CL5716M Specifications:
| Mechanical | |
| Height | 1.7 in. (4.4 cm.) |
| Width | 18.9 in. (48.0 cm.) |
| Depth | 24.9 in. (63.2 cm.) |
| Weight | 31.3 lbs. (14.2 kg.) |
| Environmental | |
| Operating Temperature | 32~122 F(0~50 C) |
| Storage Temperature | -4~140F (-20~60C) |
| Humidity | 0 - 80% RH, Noncondensing |
| Power Output Rating | |
| Total AC Power Outlet, 50/60Hz | 100 - 240 V AC, 1 A |
| Computer Connections | |
| Direct | 16 |
| Daisy Chain or Cascading | 512(via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Console Connectors | |
| Keyboard, Mouse, and Monitor | 1 x SPHD-18 M |
| Flash ROM Upgrade | 1 x RJ-11 F |
| Mouse | 1 x USB Type-A Female (White) |
| Daisy Chain | 1 x DB-25 M |
| Connectors | |
| Power | 3 prong AC Socket |
| Computer/KVM | 16 x SPHD-15 Female (Yellow) |
| USB | 1 x USB Type-A Female (White) |
| Switches | |
| Power | 1 x Rocker |
| LCD Power | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbuttons |
| Port Selection | 2 x Pushbuttons [port] 2 x Pushbuttons |
| F/W Upgrade | 1 x Slide |
| Reset | 1 x Semi-recessed Push Button |
| LEDs | |
| Port ID | 2 x 7-segment LED (Yellow) |
| Power On | 1 (Dark Green) |
| LCD Power | 1 (Orange) |
| Station ID | 2 x 7-segment LED (Yellow) |
| On Line | 16 (Orange) |
| Video Resolution | 17" LCD 1280 x 1024 @ 75 Hz (DDC2B) |
| Emulation | |
| Keyboard | PS/2, USB |
| Mouse | PS/2, USB |
| Scan Interval | 1 - 255 sec. |
UPC 672792100598
EAN 0672792100598
Question: Does this KVM switch support both PS/2 and USB KVM-connections together on the same switch?
Answer: Yes, it will support both USB and PS/2 computers at the same time. All that is needed is the purchase of the appropriate cable type: USB or PS/2. The various cables are listed on the side as accessories.
Question: Does it also supports windows 7 and 8 ?
Answer: Yes, this product is OS independent and should support Windows 7 & 8. However, it has not yet been tested to support Windows 7 & 8, so we cannot guarantee it.
Question: May I know the MTBF of this KVM?
Answer: Thank you for your inquiry,
The Aten CL5716M has a Mean Time Between Failures (MTBF) of 47,271.1 Hrs.
