1U Dual Slide 17" Rack Mount Monitor Keyboard Drawer w/ 2-user, 32-Port CAT6 KVM

D117-U3202

$1,669.00
FREE Shipping on orders over $100

The D117-U3202e is a 1U Dual Slide Rackmount LCD Monitor with 17" LCD with integrated 2-console (1 x local; 1 x remote), 32 port Combo Cat6 KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

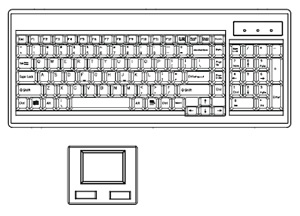

"Ne" style keyboard included with D117-U3202e
"Ne" style keyboard included with D117-U3202e

D117-U3202e Features & Benefits:

  • 1U dual slide 17" LCd console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
  • Combo interface either PS/2 or USB for single console drawer

Combo Cat6 KVM Switch Features & Benefits:

  • Combo Cat6 KVM with 32 ports in 1U
  • Up to 40 meters between your servers & KVM ports
  • Remote access up to 500 feet
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Support DVI-USB, VGA-USB & VGA-PS/2 server interface
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Multi lingual on screen display menu
D117-U3202e Rackmount LCD Diagram
D117-U3202e Rackmount LCD Diagram

D117-U3202e Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Weight27.7 lbs. (12.6 kg.)
LCD Monitor
4:3 Screen Size17" TFT
Native Resolution1280 x 1024
Brightness (cd/m2)250
Contrast Ratio1000 : 1
Viewing Angle (H x V)160° x 160°
Display Color16.7M
Active area (mm)338x270
Signal InputVGA
KVM Switch
KVM Port32 x RJ-45 connector
KVM ConnectivityDVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local ConsoleNil for LCD console drawer version
Remote I/ORJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
ExpansionUp to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
Power100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory ApprovalFCC, CE
