Raritan Single USB-C CIM with Virtual Media & Mouse Synchronization

D2CIM-VUSB-USBC

$176.00$165.65
Save $10.35
Video / Interface: USB-C
Keyboard & Mouse: USB
Virtual Media & CAC + USB Emulation: Yes
BIOS-Level Virtual Media: No
Quantity: 1 Pack
FREE Shipping on orders over $100

Raritan's new Dominion D2CIM-VUSB-USBC single USB-C CIM with virtual media & absolute mouse synchronization is a computer interfae module for attaching targets to a Raritan Dominion KX III KVM Switch. Raritan D2CIM-VUSB-USBC CIMs consolidate keyboard, video, mouse, and peripheral USB devices into a single USB-C connection to the target computer.

Please note, the D2CIM-VUSB-USBC does not support Smart Card, tiering, or audio, and only supports OS-level virtual media. For a Dominion CIM that does support these features and BIOS-level virtual media, you may be interested in the D2CIM-DVUSB-HDMI (HDMI + USB), D2CIM-DVUSB-DP (DisplayPort + USB), or the D2CIM-DVUSB-DVI (DVI + USB) instead.

* Please note: This Digital Computer Interface Module requires at least Dominion KX II Release 3.6 firmware to operate.

Raritan D2CIM-VUSB-USBC Features

  • Raritan D2CIM-VUSB-USBC - Consolidates USB Keyboard & Mouse, Video, and Peripheral USB device signals into a single USB-C connection

    Single USB-C Cable

    Raritan new D2CIM-VUSB-USBC Computer Interface Module (CIM) consolidates USB Keyboard & Mouse, Video, and Peripheral USB device signals into a single USB-C connection to the target computer. Additionally, it is simple to adapt Digital (DVI, HDMI, DP) or Analog (VGA) source signals to USB-C using readily available USB-C video adapters.
  • Raritan D2CIM-VUSB-USBC - USB-C Up to 150ft via Single CATx Cable

    USB-C Up to 150ft via Single CATx Cable

    Raritan D2CIM-VUSB-USBC Computer Interface Module (CIM) extends access to your USB-C enabled computer from a DKX3 KVM Switch over a single CAT5/6 cable; The maximum resolution achievable is:
    • 1920 x 1080 - up to 150 feet (50 meters)
  • Raritan D2CIM-VUSB-USBC supports High Definition 1080P USB-C Video

    Blazing-fast, High Definition Video Over USB-C

    Raritans new enhanced digital D2CIM-VUSB-USBC CIM supports high definition standard USB-C video resolutions of up to 1920x1080, including widescreen formats.


  • Raritan D2CIM-VUSB-USBC - USB / USB-C Virtual Media

    USB Virtual Media

    Raritan D2CIM-VUSB-USBC supports beaming of USB peripheral devices over IP - also known as "Virtual Media". This enables the use of memory sticks, external drives, mice, and web cameras with remote target servers.

  • Raritan D2CIM-VUSB-USBC - Supports Desktop & Mobile Sources

    Supports Desktop & Mobile* Sources

    Raritan D2CIM-VUSB-USBC enables support for controlling & switching between PCs, Servers, Phones, Tablets, and other USB-C based devices* remotely over the internet. Raritans HTML KVM Client also allows acces & control of sources from a PC, phone, or tablet device.

  • Raritan D2CIM-VUSB-USBC - Absolute Mouse Synchronization

    Absolute Mouse Synchronization

    The Absolute Mouse Synchronization feature in the D2CIM-VUSB-USBC allows for the use of absolute coordinates that are specified in the USB HID mouse specification instead of using 'mouse acceleration' on the target machine mouse drivers. This ensures the pointers are always synchronized.


  • Raritan D2CIM-VUSB-USBC - extended profile DDC/E-EDID display emulation

    DDC/E-EDID Display Emulation

    DDC/E-EDID is supported by the digital CIMs with the "preferred timing mode" set by the Dominion KX III administrator. This is the preferred/native/default video resolution, called the "Display Native Resolution" on the KX GUI. The default resolution can be changed by the user on the Port Configuration Page for each port.

  • Raritan D2CIM-VUSB-USBC - Compact 0U palm-sized

    Compact 'Zero-U'

    Raritan CIMs are compact transmitters that fit in your palm, and take 0U of space in rack. These CIMs can simply be zip-tied or hang off the back of racks.

  • Raritan D2CIM-VUSB-USBC USB-C Powered (No external power supplies needed)

    USB Powered

    Raritan D2CIM-VUSB-USBC CIMs are automatically powered over the USB-C connector by the source computer. This eliminates a need for any separate power supply and makes setup simple.

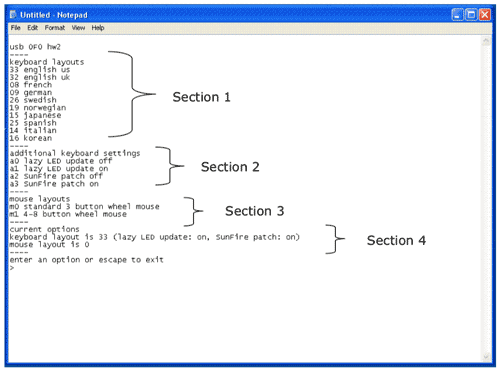

  • Raritan D2CIM-VUSB-USBC Flash upgradable

    Flash Updatable

    Raritan CIMs can be Flash-upgraded with new firmware - ensuring Raritan CIMs are future proof - and allow you to set custom settings for each CIM level for non-standard operations.

  • Raritan D2CIM-VUSB-USBC Plug and Play - No drivers needed

    Plug and Play

    Raritan CIMs are designed for plug and play functionality and do not require any drivers or software to be installed for standard operations.


D2CIM-VUSB-USBC Package Contents

Raritan D2CIM-VUSB-USBC What's Included?

  1. (1) D2CIM-VUSB-USBC Interface Module
  2. (1) 2-Year Limited Warranty Card

D2CIM-VUSB-USBC Resources


Raritan D2CIM-VUSB-USBC CIM (Computer Interface) Manual ThumbnailDKX3 CIM / D2CIM-VUSB-USBC Manual (PDF)

Please note: the D2CIM-VUSB-USBC was also briefly called the D2CIM-VUSB-C.
