Up to 150ft via Single CATx Cable
Raritan D2CIM-VUSB Computer Interface Module (CIM) extends access to your VGA enabled computer over a single CAT5/6 cable; The maximum resolution achievable is:- 1920 x 1080 - up to 150 feet (50 meters)
Raritan VGA USB Interface Module with Virtual Media
D2CIM-VUSB
Save $9.76
Video / Interface: VGA
Keyboard & Mouse: USB
Virtual Media & CAC + USB Emulation: Yes
BIOS-Level Virtual Media: No
Quantity: 1 Pack
The Raritan Dominion D2CIM-VUSB is a USB Computer Interface Module or CIM with Virtual Media. This CIM is required for virtual media and mouse synchronization. D2CIM-VUSB CIM is used in conjuction with Raritan Dominion KX III or legacy Raritan Dominion KX II series KVM Switches.
Raritan D2CIM-VUSB Features
Blazing-fast, High Definition VGA Video
Raritans single USB D2CIM-VUSB CIM supports high definition standard VGA video resolutions of up to 1920x1080, including widescreen formats.
USB Virtual Media (OS-Level)
Raritan D2CIM-VUSB supports beaming of USB devices over IP - also known as "Virtual Media". This enables the use of memory sticks, external drives, mice, and web cameras are all interfaced over with target servers.
Absolute Mouse Synchronization
The Absolute Mouse Synchronization feature in the D2CIM-VUSB allows for the use of absolute coordinates that are specified in the USB HID mouse specification instead of using 'mouse acceleration' on the target machine mouse drivers. This ensures the pointers are always synchronized.
DDC/E-EDID Display Emulation
DDC/E-EDID is supported by the single USB CIMs with the "preferred timing mode" set by the Dominion KX III administrator. This is the preferred/native/default video resolution, called the "Display Native Resolution" on the KX GUI. The default resolution can be changed by the user on the Port Configuration Page for each port.
Compact 'Zero-U'
Raritan CIMs are compact transmitters that fit in your palm, and take 0U of space in rack. These CIMs can simply be zip-tied or hang off the back of racks.
USB Powered
Raritan CIMs are automatically powered over USB connector by the source computer. This eliminates a need for any separate power supply and makes setup simple.

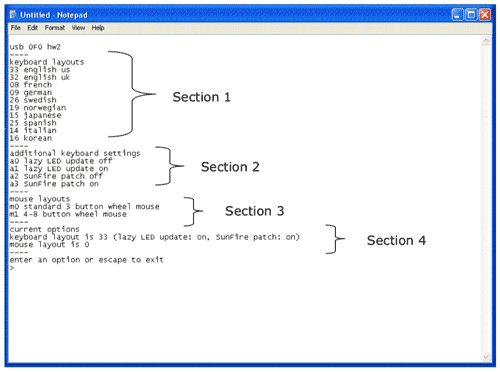

Flash Updatable
Raritan CIMs can be Flash-upgraded with new firmware - ensuring Raritan CIMs are future proof - and allow you to set custom settings for each CIM level for non-standard operations.
Plug and Play
Raritan CIMs are designed for plug and play functionality and do not require any drivers or software to be installed for standard operations.
D2CIM-VUSB Package Contents
- (1) D2CIM-VUSB Computer Interface Module
- (1) 2-Year Limited Warranty Card
UPC 785813332004
EAN 0785813332004
Question: I'm considering purchasing a Raritan KXII and using it for my rack of Dell Poweredge 1850 & 1950s. Do I only need the single USB port to support keyboard & video or would I need to get a CIM that has the two USB ports. I'm a little confused on the difference between the two.
Answer: Thank you for your inquiry. Yes, the single USB port on this Computer Interface Module will support both keyboard and mouse.
However, there are other considerations when selecting a CIM. For instance, this particular CIM will support virtual media (ability to connect remote storage devices).
If you would like further assistance in selecting the appropriate CIMs, please give us a call (toll free) at 1-877-586-6654.
Question: Can this module be used independently of the Raritan KXII switch for one machine at a time?
Answer: Thank you for your inquiry. No, unfortunitly, this product requires the use of a Raritan KVM Switch to operate.
Question: what does this particular D2CIM_VUSB do
Answer: Thank you for your inquiry. This computer interface module (CIM), also referred to as a KVM dongle or Computer Access Module (CAM), is used to attach a target computer to a Raritan KVM Switch such as the via CAT5/5e/6 cable. In addition to providing VGA and USB connections, this particular CIM will also provide virtual media support to allow the KVM to mount removable storage devices to the target computer.
Question: I need to extend the USB port 150 feet away from my computer server and the direct USB cable length can only be extended to 30ft max. I was totld that Raritan KVM and its CIM could allow me to extend this USB port at such distance. Please advise on the component models and price quotes. Thanks.
Answer: Thank you for your inquiry. It is possible that a CATx style KVM using CIMs may reach out to 150 feet, but there may be better options depending on the requirements of your particular project/environment. Please contact a KVM Switches Online representative at 1-877-586-6654 or via our online chat feature to discuss your project in greater detail.
Question: We have a few servers that still use USB 1.0. I wanted to make sure these were backwards compatible with USB 1.0 or if we will need to purchase the PS/2 version for the older machines.
Answer: Thank you for your inquiry. Unfortunately, USB 1.0 and 1.1 are not fully supported by this device.
