The Raritan D2CIM-DVUSB-DP is a dual USB, DisplayPort based virtual media CIM for use with certain Raritan KVMs. This CIM is required for virtual media, absolute mouse synchronization, and the advanced KVM features of the Raritan Dominion KX III or the legacy Raritan Dominion KX II. This CIM is recommended for customers with DisplayPort KVM needs, planning to access virtual media drives at the OS/BIOS levels as well as the Smart Card, tiering and audio features.
* Please note: This Digital Computer Interface Module requires Dominion KX II Release 2.5 firmware to operate.
Raritan D2CIM-DVUSB-DP Features
Up to 150ft via Single CATx Cable
Raritan D2CIM-DVUSB-DP Computer Interface Module (CIM) extends access to your DisplayPort enabled computer over a single CAT5/6 cable; The maximum resolution achievable is:
- 1920 x 1080 - up to 150 feet (50 meters)
Blazing-fast, High Definition DisplayPort Video
Raritans new enhanced digital D2CIM-DVUSB-DP CIM supports high definition standard DisplayPort video resolutions of up to 1920x1080, including widescreen formats.
USB Virtual Media with Support for Audio & Smart Card (CAC)
Raritan D2CIM-DVUSB-DP supports beaming of USB devices over IP - also known as "Virtual Media". This enables the use of memory sticks, external drives, mice, and web cameras with remote target servers. The included dual USB also supports Smart Card or US Government Common Access Card (CAC) use.
BIOS-Level Virtual Media
The D2CIM-DVUSB-DP has two USB plugs, one for keyboard/mouse and one for virtual media; This enables many additional server BIOS, including ones that require a special 'USB Profile', to access virtual media drives.
Absolute Mouse Synchronization
The Absolute Mouse Synchronization feature in the D2CIM-DVUSB-DP allows for the use of absolute coordinates that are specified in the USB HID mouse specification instead of using 'mouse acceleration' on the target machine mouse drivers. This ensures the pointers are always synchronized.
DDC/E-EDID Display Emulation
DDC/E-EDID is supported by the digital CIMs with the "preferred timing mode" set by the Dominion KX III administrator. This is the preferred/native/default video resolution, called the "Display Native Resolution" on the KX GUI. The default resolution can be changed by the user on the Port Configuration Page for each port.
Audio via USB
Digital Audio over IP is supported using USB Virtual Media on new enhanced Dominion KX III CIMS. USB Audio allows you to interface with audio peripherals such as speakers, microphones, or mixing desks. Note, Audio is not embedded in the DisplayPort signal.
Raritan CIMs are compact transmitters that fit in your palm, and take 0U of space in rack. These CIMs can simply be zip-tied or hang off the back of racks.
Raritan CIMs are automatically powered over USB connector by the source computer. This eliminates a need for any separate power supply and makes setup simple.

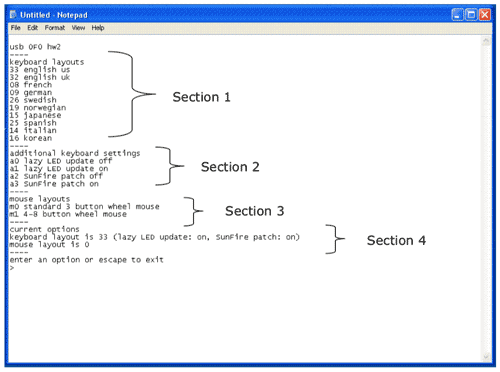

Raritan CIMs can be Flash-upgraded with new firmware - ensuring Raritan CIMs are future proof - and allow you to set custom settings for each CIM level for non-standard operations.
Plug and Play
Raritan CIMs are designed for plug and play functionality and do not require any drivers or software to be installed for standard operations.
D2CIM-DVUSB-DP Package Contents
- (1) D2CIM-DVUSB-DP Computer Interface Module
- (1) 2-Year Limited Warranty Card
UPC 785813334169EAN 0785813334169
Question: Why can't I select Canada as a ship to country?
Answer: Thank you for your inquiry,
While we do accept orders from Canada, we do not currently support placing those orders online. Please review our International Order Policy
, and then contact your KVM Switches Online sales representative
to place the order.
Question: Would you happen to have a Drawing for PN: D2CIM-DVUSB-DP ?
Answer: Thank you for your inquiry. You can find a PDF mechanical drawing here: https://www.42u.com/pdf/MD2CIM-DVUSB-DP.pdf
Question: Hello, How could i have audio with this dongle ? Regards,
Answer: Thank you for your inquiry. According to the manufacturer, digital audio is supported over USB, not embedded in the HDMI or DisplayPort signals.
You can read more about the DKX III's audio support in the online help guide: https://help.raritan.com/kx-iii/v3.5.0/en/#31270.htm
Question: Who in the UK Distributes the D2CIM-DVUSB-DP. I am looking for a quote for quantity 4.
Answer: Thank you for your inquiry,
We can sell Raritan equipment to the UK for orders over $1000 where the end user is in the USA and ships it to UK, or where can get the PO from a US based office and the product to the UK with shipping account. For more information on international orders, please refer to our international order policy
You can also find a list of our international partners
here that may be able to help you as well.
