4 Port Dominion Serial Access Module (DSAM-4)

DSAM-4

$659.00$620.24
Save $38.76
Serial Devices: 4 Port
FREE Shipping on orders over $100

With Raritan's new DSAM-4 4 Port Serial Access Module, users can manage up to 8 serial devices connected to a Dominion KX III KVM-over-IP switch (up to 2x DSAM per DKX3). The four port DSAM modules provide true, Java-free serial access to devices such as LAN switches, routers and Linux/Unix servers. DSAM's are perfect for remote and branch offices where both KVM and serial access is needed.

Java Free Serial Over IP
  • Up to 4 serial sessions per DSAM-4
  • Up to 2 DSAM modules per Dominion KX III
  • Auto DTE/DCE detection
  • Java-Free HTML Access
  • SSH Client, putty use
  • Up to 230,400 baud
  • Powered from the Dominion KX III
  • Remote power control with Raritan PX iPDU


True Serial Access for the Dominion KX III

The DSAM modules provide up to eight ports of true serial access from a Dominion KX III switch. Connect one or two modules to the KX III's USB ports for Java-free serial access. Manage switches, routers, Linux/Unix servers and other serial devices together with KVM-over-IP access to servers, PC's and workstations.

DSAM Configurations & Connections

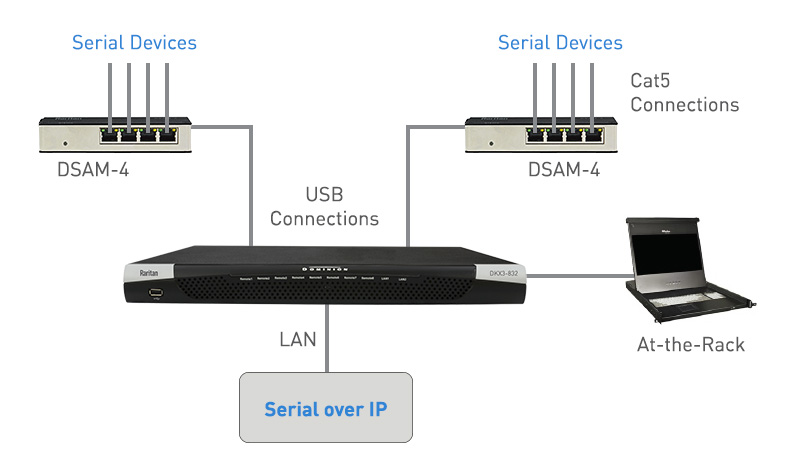

DKX3 Dominion Serial Access Modules Diagram

High Speed Serial Access

DSAMs provide high speed serial access, up to 230K baud. Automatic DTE/DCE detection means rollover cables are never required!

  • Auto DTE/DCE detection
  • Java-Free HTML Access
  • Up to 230,400 baud
  • SSH Client, putty use
  • Up to 8 ports per Dominion KX III
  • Up to 8 serial sessions per Dominion KX III
  • Remote power control with Raritan PX iPDU

Easy to Deploy

The DSAM is a Zero-U device that does not require rack space. Powered by the KX III, external power adapters are not required. No rollover cables!

  • Zero U Mounting
  • Connect via USB to Dominion KX III
  • Powered from the Dominion KX III
  • No Rollover Cables
  • Auto DTE/DCE detect

Low Total Cost

Unlike competing solutions, the DSAM provides independent serial access. Valuable KVM ports and IP sessions are not used for serial connections.

  • KX III ports not used
  • IP sessions not used
  • Does not require power from serial device or adapter

Applications

  • KVM and Serial Access
  • Serial Device Control
  • Linux, Unix Servers
  • LAN Switches & Routers
  • Network, Security & Telecom Devices
  • Remote/Branch Offices

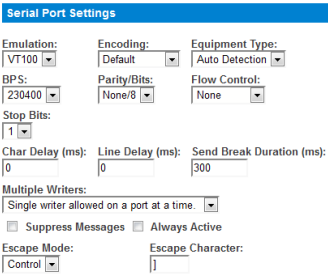

Serial Port Settings


DSAM Resources

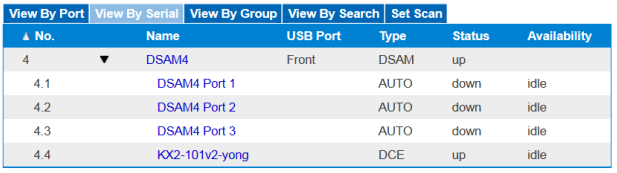

DSAM Manual ScreenshotDSAM Serial Module Brochure (PDF)

Raritan DSAM-4 Specifications

Mechanical
Width 5.0 in. (440 mm.)
Depth0.9 in. (334 mm.)
Height 1.5 in. (44 mm.)
Serial Ports4 RJ45 Female
USB PortUSB Type A Plug
USB Cable3 ft USB Cable
MountingMagnetic strip and Included Bracket
Environmental
Temperature0-50° C
Humidity0-85% RH
PowerUSB Powered from KX III, 1W Max, 5V DC
ConnectionsMaximum of 2 DSAMs (8 ports) per KX
Limits on USB devices - See KX III documentation
MTBF (Hours)958,745
