IOGEAR 8 Port VGA PS/2 KVM Switch
GCS78
The IOGEAR GCS78 is an 8-port PS/2 KVM which allows you to control up to eight computers with a single keyboard, monitor and mouse. This 8 port KVM switch comes with built-in AutoScan mode that lets you conveniently monitor every attached computer for a specified amount of time, while IOGEAR's Hot Key technology allows you to switch ports easily using the keyboard. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the IOGEAR 8-port PS/2 is the perfect switch for your home, small business or any other multi-computer environment.

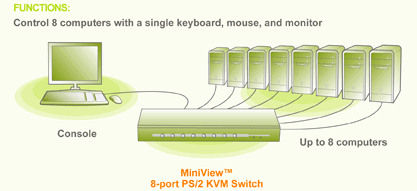

IOGEAR PS/2 KVM Switch Diagram
IOGEAR PS/2 KVM Switch Features:
- Use one keyboard, monitor and mouse to control up to 8 computers
- Connected computers can be added or removed from the setup without disturbing the other computers
- Plug-n-Play monitor support; high-resolution video support (up to 1920 x 1440)
- Easy to install - no software required
- Easy to operate - use push button at the front and hot keys to switch port
- Built in AutoScan mode
- LEDs allow for easy status monitoring
IOGEAR GCS78 Package Includes:
- 1 PS/2 KVM switch
- 1 Power adapter
- 1 Rack mount kit
- 1 Quick start guide
- 1 Warranty/Registration card
IOGEAR GCS78 Specifications:
| Mechanical | |
| Height | 1.75 in. (4.45 cm.) |
| Width | 17 in. (43.18 cm.) |
| Depth | 6 in. (15.24 cm.) |
| Weight | 7.8 lbs. (3.51 kg.) |
| Housing | |
| Case | Metal |
| CPU Connectors | |
| Keyboard | 8x6 pin mini-DIN Female (PS/2) |
| Monitor | 8xHDDB15 Male |
| Mouse | 8x6 pin mini-DIN Female (PS/2) |
| Console Connectors | |
| Keyboard | 1x6 pin mini-DIN Female (PS/2) |
| Monitor | 1xHDDB15 Female |
| Mouse | 1x6 pin mini-DIN Female (PS/2) |
| Power | |
| Consumption | 1.08W max |
| Amps | 400 mA(Max) |
| Voltage | DC 9V |
| LEDs | |
| Selected | 8 |
| On Line | 8 |
| Power On | 1 |
| Emulation | |
| Keyboard | PS/2 |
| Mouse | PS/2 |
| Computer Connections | |
| Direct | 8 |
| Video Resolution | 1920x1440; DDC2B |
| Scan Interval | 5 seconds |
| Port Selection | Push Buttons, Hot Keys |
| Requirements | Computers with PS/2 connections, and HDDB15 VGA connection |

UPC 881317003744
EAN 0881317003744
