iBoot-PoE-I - Active Gigabit Ethernet PoE Injector with Reboot

iBoot-PoE-I

$214.00$209.65
Save $4.35
Model: iBoot-PoE-I
Version: Active 802.3at/af up to 25.5W PoE Injector with Reboot
FREE Shipping on orders over $100

The Dataprobe iBoot-PoE-I (SKU 1410048) brings all the benefits of Automatic and Cloud Controlled reboot to your PoE cameras, access points, security systems and all PoE plus devices. This Gigabit Ethernet PoE Extender supports up to 25.5 Watts of switching and automatic configuration. Using the included Power Supply, iBoot-PoE-I becomes a full PoE Midspan Injector, with reboot!

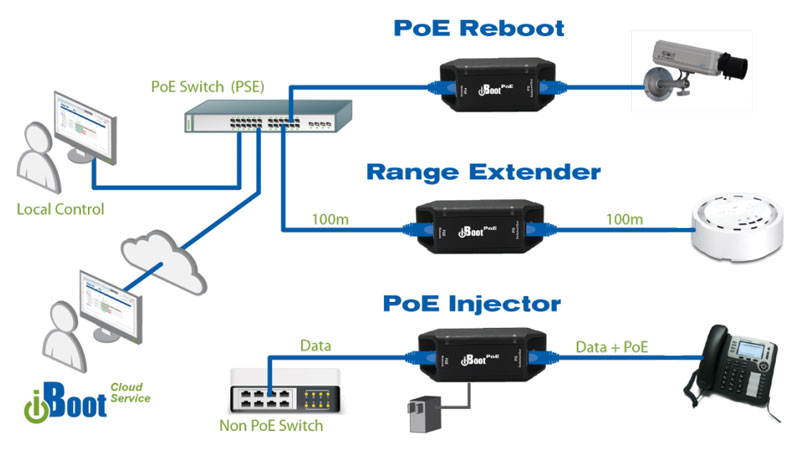

Dataprobe iBoot-PoE-I Uses Application Diagram

  • Automatic reboot of PoE devices - Cameras, Access Points, Phones, etc.
  • PoE Injector - Optional PoE Extender Function
    • PoE Injector - When used with included Power Supply PS-WRI-7, iBoot-PoE-I is a complete PoE injector with reboot. The external power supply can also function as back-up power in the event that the PoE power fails.
    • Range Extender - Add 330 feet / 100 meters to PoE runs
  • PoE Plus (802.3at) Compliant 25.5 Watts Maximum.
  • Web Based setup and control.
  • Automatic Reboot using AutoPing and Traffic Monitor.
  • Event Scheduling for real-time power control.
  • Telnet setup and control.
  • Management Utility: Easy Setup, Firmware upgrades and Reset to Factory Default.
  • iBoot Cloud Service: Control all your iBoots from one web portal.

iBoot-PoE-I Operation

When you need to reduce costly site visits, ensure business continuity and increase network reliability, iBoot series gives you peace of mind. iBoot-PoE-I, a web-accessible managed single-device Remote Reboot PDU enables multiple users to reboot remotely from anywhere, using any web browser, Telnet client or SNMP manager.

From servers and webcams to IP PBXes and surveillance systems, iBoot-PoE-I keeps your network up and running.

iBoot PoE Control Browser Window

Remote Power Switch - Simple Web Browser Control

Clean web page design makes it easy to see the status and control power to any outlet, while history log shows the last 5 events.

The web page presents a clear status indication of each outlet, current draw across all inputs and the AutoPing monitoring, if implemented.

Adaptive mobile pages make it easy to make that quick reboot from you smartphone while on the go.

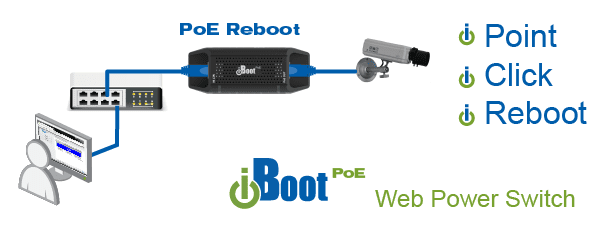

Dataprobe iBoot-PoE-I Remote Web Power Switch

iBoot Cloud Service - Power Control Wherever you Are

iBoot Cloud Service (iBCS) allows customers with iBoot-PoE-I to access and control multiple iBoots in multiple locations from a single portal with a single sign-on.

iBCS will not only make using iBoots easier, by consolidating all units into one sign-on and interface, it will also enhance the number of situations where iBoot can be deployed.

  • Customers with Dynamic IP addressing to always be able to access their iBoot from any location.
  • Service providers manage multiple customer accounts with diverse security configurations.
  • Customers that are not allow in-bound connections to access their iBoots.
Learn More
iBoot PoE Cloud Service DiagramiBoot-PoE-I Cloud Service  User Interface Control Window

Active PoE Extender

Dataprobe iBoot-PoE-I Active PoE Range Extender

iBoot-PoE-I is an Active PoE Extender. Complies with IEEE 802.af and 802.3at to give you up to 25.5 Watts of power for your devices. Designed to protect non-PoE devices that may be inadvertently connected.

Active PoE Injector

Dataprobe iBoot-PoE-I Active PoE Injector

With the optional power supply, iBoot-PoE-I becomes an injector making it easy to add PoE devices onto you and have automatic self-healing and managed reboot built right in.

Sophisticated Automation

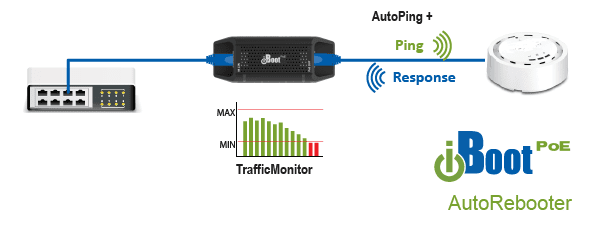

iBoot-PoE-I Automatic Reboot - AutoPing + TrafficMonitor

iBoot-PoE-I is designed to automatically configure itself to your network environment for maximum uptime. Monitor critical parameters and take corrective action immediately - Build optional complex notification and reporting for environmental, power and network faults. Set trigger points and create sequences of responses to keep your network up and running.

iBoot-PoE-I Features

  • Web Browser Power Control: Clean Web page design for immediate status and power control. Auto detects mobile browsers. No special software required.

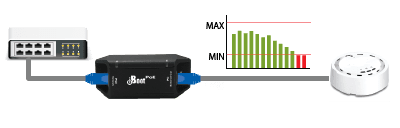

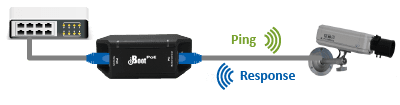

  • Automatic System Restoral: AutoPing and Traffic Monitor detect network or equipment problems and takes immediate action to restore your network or device. Real time scheduling to have a fresh reboot each morning or minimize power waste at night.
  • Cloud Control: Manage all your iBoots from a single sign-on. Control power worldwide from any web browser, anytime anywhere.
  • Active PoE Extender: Compliant with IEEE 802.3af and 802.3at standards. Protects non PoE products from accidental damage.
  • PoE Injector: With the Add-on Power Supply, iBoot-PoE-I becomes a complete midspan injector with reboot.
  • Automatic Configuration: Completely self configured in standard DHCP environments. Just install and your network is protected.
  • Dual Password Protected: Separate user and administrator passwords. Deploy iBoots throughout your organization.
  • IP Addressed, 10/100/1000 Ethernet: Use on any Ethernet IP network. Public or private. Supports DHCP and alternate ports for Web Access.
  • Direct TCP and Software Control: Control iBoot-PoE-I directly from your software application for the highest degree of power control integration. Easy integration with network monitoring from IPSentry, What'sUP Gold, SNMP Managers etc.

iBoot-PoE-I Package Contents

Dataprobe iBoot-PoE-I Package Contents
  • (1) iBoot-PoE
  • (1) PS-WRI-7 Power Supply
  • (1) Network Cable
  • (1) Quick-Start Guide
  • (1) 3-Year Warranty

Dataprobe iBoot-PoE-I Specifications

Mechanical
Width4.90 in. (124 mm.)
Height1.85 in. (47 mm.)
Depth1.34 in. (34 mm.)
PoE StandardsPoE, PoE+ IEEE 802.3af 802.3at, Up to 25.5W
Ethernet10/100/1000 Full or Half Duplex Auto sensing Uplink/Downlink (Cat 5 Cable Included 6'/2m long)
SecurityDual Password Protected, User and Admin
LED IndicatorsLEDs on Network Jacks indicate network status
NET IN: Power to the iBoot-PoE
PoE OUT: Power supplied to PD
Temperature0 to 50 Deg C
ComplianceRoHS/WEEE FCC Part 15 Class B CE

The Dataprobe iBoot-PoE is also known as Dataprobe 1410048.
