Avocent 18.5" Local Rack Access USB LCD Console - TAA compliant

LRA185KMM-G01

$1,185.00$836.47
Save $348.53
Interface: USB Console + (2) USB Peripheral Pass-Through
Integrated KVM Switch: VGA Video Input Only
Version: TAA Compliant
FREE Shipping on orders over $100

The Avocent TAA LRA185KMM-G01 provides the simplicity, efficiency and ease of use to make it the perfect at the rack access point for your data center, server room or computer closet. The Avocent LRA Console combines the efficiency in power and space consumption needed for an emergency access solution with the convenience and user experience of a workstation solution. When connected to a KVM Switch, the Avocent LRA185KMM  enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.

The Avocent LRA Console tray provides field proven access within the data center allowing data center operators immediate access to server, network switches and other IT gear from inside the data center with no need for crash carts or other cumbersome equipment. The tray features standard USB and VGA interfaces providing compatibility to a vast number of servers and devices natively. It is compatible with all recent AvocentĘ data center KVM solutions and can easily be used in conjunction with many of the market-leading AvocentĘ access technologies.

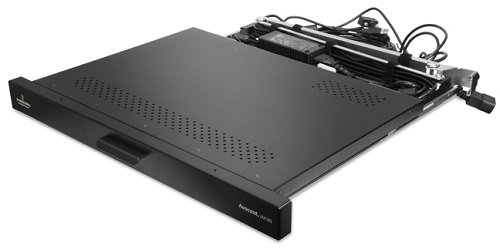

LRA185KMM Closed for storage
Image showing LRA185KMM closed for storage.

  • Large Screen: 16x9 18.5" with variable resolutions for optimal performance
  • Form Factor: Trays are easy to access, yet lock securely in and only 1U preserving rack space
  • KVM Compatibility: LRA Consoles are compatible with all AvocentĘ data center KVM switches
  • On-Screen Display: Easy-to use intuitive design in multiple languages
  • Provides conventional access and control in the data center for emergencies as well as extended use
  • Ease of use: Convenient, full 103-keys keyboard with full number pad
  • Environmentally responsible: Low power usage during operation and standby
  • Global availability: Certifications and keyboard language support
  • Dual USB 2.0 pass-thru for faster data transmission
  • Available in PS/2 or USB keyboard
  • Keyboard available in 11 languages - Call 1-877-586-6654 for availability



LRA185KMM-G01 Specifications

Mechanical
Height 1.75 in.
Width 19 in.
Depth

21 in.

Weight 22 lbs
Environmental
Operating Temperature 32° to 120° F
(0° to 50° C)
Storage Temperature -4° to 158° F
(-20° to 70° C)
Power
Operating Voltage Input: 90-264 VAC
Input Consumption 17-20W
Supported Hardware
Keyboard and Mouse Connector USB
Video Connector VGA
Hardware Specifications
LCD Resolution 1366 x 768 @60Hz Standard Resolution
1600 x 1200 @60Hz maximum
640 x 400 @60Hz minimum
Refresh range: 55Hz to 85Hz (scaled)
Standards
Approved Agency UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A



Question: How many ports does the Part # LRA185KMMP-001 have
Answer: Thank you for your inquiry,

The Avocent LRA185KMMP-001 would be considered 1 port (not integrated with a KVM) - you could use it to access one pc, server, or a KVM switch with other devices attached.

If you would like to procure a console drawer with an integrated KVM switch, please see the similar RWX119.

If you would like a recommendation based on your setup, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality.
