Avocent LongView CATx Extender Kit - VGA, USB / USB Hub, audio - up to 1000ft


Save $578.24
Model: VGA, Audio & USB up to 1000ft
Video Connections: Single-Head VGA
FREE Shipping on orders over $100
Avocent LV 3000 Series KVM Extender Solution: Overview

Avocent LV3010P-001 extender kit (transmitter & receiver) lets you place a USB keyboard & mouse, VGA monitor, speakers and microphone up to 1,000 feet away from a computer or Avocent KVM switch.

The Avocent LV3000 next generation USB, video and audio extenders delivers sharp, bright and high resolution video images and high quality audio for single and multi screen desktops at distances up to 300m (1000ft) over a single or multiple CATx cables. The LV3000 series has been designed to provide industry-leading video clarity, compatibility and high rack densities.

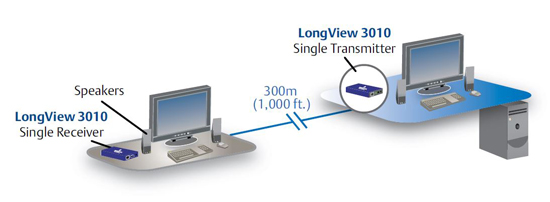

Avocent LV3010P Application

  • Digital Extension Technology - Allows the computer and user to be located up to 1000 feet from the source.
  • Precision video - VGA resolutions of 1920 x 1200 are achievable at up to 300 meters (1000ft)
  • Plug and Play - The LV3000 series extenders are delivered in a zero configuration state so you can plug them in and start working immediately. There's no need for additional drivers or software
  • USB Support - USB 2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device that would normally be plugged into your computer's USB port.
  • USB Powered & Emulated two page DDC EDID - The transmitter is powered via its USB port to reduce the need for external supplies. There is an option for an external power supply if the USB port has insufficient power. This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance.
  • Audio - Audio transmission delivers CD quality stereo audio for speakers.
  • Rack options - Both transmitter and receiver units can be used stand-alone or up to 16.

Dual User Configuration

Two LV3000 units can be linked to a single computer so two users can access the system. When using two sets of LV3000 modules to allow two users to access a single computer the arbitration between the users is handled by the USB sub-system of the computer. This means that both users can control the computer at exactly the same time.

Video Compensation

Industry leading video compensation enables superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receiver's keyboard management to allow the true characteristics of the monitor to be passed back to the computer.

Resolution (@60Hz) Cable Patches Distance

200 meters using CAT5 Trunk cable
250 meters (820 ft.) using CAT5e Trunk cable
300 meters (1000 ft.) using CAT6 Trunk cable
300 meters (1000 ft.) using CAT7 Trunk cable
200 meters (656 ft.) using CAT7a Patch cable

Whats Included

  • (1) Longview Transmitter
  • (1) Longview Receiver
  • (1) VGA Cable
  • (1) 13.5mm Audio Cable
  • (1) USB B to A Cable
  • (1) Power Supply
  • (1) Power Cord
  • Documentation Manual

Avocent LV3010P is a replacement for:

  • LV430-AM
  • LV830-AM
  • LV1000P-001
  • LV1000U-001
  • LV1000R-001

LV3010P Specifications

Transmitter 6.4in x 1in x 3in
162mm x 26mm x 75mm
Receiver 4.8in x 1in x 3in
122mm x 26mm x 75mm
Transmitter .95 lbs. (.43 Kg)
Receiver .77 lbs. (.35 Kg)
Operating Temperature 32° to 104°F
(0° to 40°C)
Operating Voltage 100-240VAC
Power Frequency 50-60 Hz
Input Power 5V

LV3010 Transmitter 2 x 15 Pin D Type VGA

LV3010 Receiver
1 x 15 Pin D Type VGA

Resolutions up to 1920x1200 @60Hz


LV3010 Transmitter
4 x USB type A

LV3010 Receiver

1 x USB type B Supports USB keyboard, mouse, mass storage and other USB enabled devices

Multimedia Analog stereo audio
1 x 3.5mm in (TX)
1 x 3.5 mm out (RX)
1 stereo speaker socket

2 channel 16 bit Audio @ 44.1 KHz THD+N typically -80dB at 1kHz SNR typically 85dB at 1kHz

SSL/AES 128 bit


100Mbps or 1Gbps

Approved Agency


UPC / EAN Barcode icon
UPC 636430078090
EAN 0636430078090
Question: does this kit include the LV3000 PRO modules?
Answer: Thank you for your inquiry,

Two of the LV3010 extender kits can be linked to a single computer so two users can access the
system. So esentially you would purchase two seperate LV3010P kits and link them.

Question: What kind of cables are icluded in thid kit? The computer to be connected to this kit is about 16 years old (ENCO). I am not sure if the USB ports are version 1.1 or 2.0. Will the KVM extender work with USB 1.1 ports?
Answer: Thank you for your inquiry,

The LV3010P supports USB 2.0 - all USB 2.0 and 3.0 connectors are fully backwards compatible for USB 1.1.

The Avocent LV3010P-001 Package Includes:
1x Transmitter
1x Receiver
1x power cord
1x manual

The Rack mounting kit, CAT5 cable, VGA Cables, USB Cables, and Audio cables would be aquired seperately.

Question: Can you purchase the LV3010P Transmitter by itself without the Receiver?
Answer: Thank you for your inquiry,

The LV3010P transmitters and receivers are currently only offered as a pair; As of today (3/20/2017), Avocent does not have plans to offer the pair as individuals.

If you would like any recommendations based on your application, please feel free to contact your KVM Switches Online sales representative directly.

Question: Screen on receiver blinks every 5 to 10 seconds goes black then pic comes back any ideas
Answer: Thank you for your inquiry

If you have checked all of your cable connections and tried changing resolutions on your source device / target display, we would recommend contacting Vertiv (Avocent) Technical support at +1 800 543 2378 or at support.avocent@vertivco.com

Question: I want to use the LV3010P-001 to extend a touchscreen. Will the USB ports support touch software
Answer: Thank you for your inquiry,

Yes; The LV3010P features transparent USB 2.0 (low and full speed) extension, allowing all USB compatible accessories, including usb based touchscreens and isochronous (video or audio data flow) devices, to be extended.

Question: Can I use my lv830-am with the LV3010P-001 or the dual option?
Answer: Thank you for your inquiry,

LV3010P transmitter and receiver units are not interchangeable with legacy LV LongView infrastructure.

The LV830-AM series was replaced by the Avocent LV3000 series; Alternatively, you may also be interested in the very similar Adder X2-DA-GOLD or Adder X-USBPRO-MS2 (note, USB).
