1U 17" LCD Keyboard Drawer w/ 8-Port PS/2 KVM



Replaced by: Cyberview N117-S801
Alternative options: Contact Us

The N117-801 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and 8 port PS/2 KVM Switch.  Includes (8) CD-6 KVM Cables.

This model comes with either of the following keyboard options:

Keyboard Options

N117-801 Rackmount LCD Features:

  • 104 key keyboard with touchpad
  • 11U dual slide 17" LCD console drawer
  • Combo interface either PS/2 or USB for single console drawer
  • Enhanced aesthetics with new molded front panel and two point lock
  • Multi lingual on screen display menu
  • Cost efficient DB-15 KVM integration

N117-801 KVM Features & Benefits:

  • 1U dual slide rackmount drawer with 17" LCD panel
  • Mix PS/2, USB & SUN with Multi-platform switch capability
  • Combo interface either PS/2 or USB for single console drawer
  • 104-key keyboard with touchpad
  • Enhanced aesthetics with newmolded front panel and two point lock

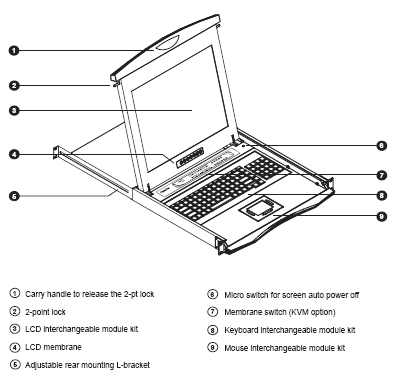

Structural Diagram


Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Package Dimensions5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.7 lbs. (12.6 kg.)
Gross Weight40.5 lbs. (18.4 kg.)
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 65°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 40 Watt, Standby 5 Watt
LCD Display
Diagonal Size17" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)250
Color Support16.2 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)338 x 270
Signal InputVGA
Plug & Play DDCEDID 1.3
Console Port (Combo)4-in-1 DB-15 connector for VGA / keyboard /mouse
Support USB & PS/2 servers
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Regulation ApprovalFCC, CE
