1U 17" Rack Mount Monitor Keyboard Drawer w/ Touchpad or Trackball

N117

$1,174.00$1,029.00
Save $145.00
Model: 17"
  • 17"
  • 19"
  • + Compare Family
FREE Shipping on orders over $100

The N117 is a 1U Rackmount LCD Monitor with 17" LCD. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

Austin Hughes CyberView N117 Diagram

N117 Features & Benefits:

  • 1U 17" LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" ) only
  • Enhanced aesthetics with molded front handle and two point lock

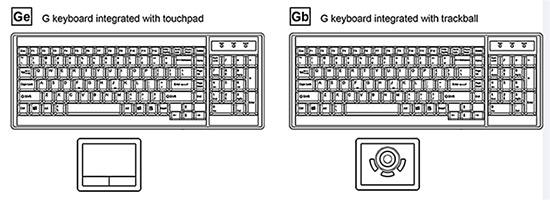

"Ne" style keyboard included with N117

Optional Configurations (Contact us for availability)

  • DVI-D / HDMI 1.2 video input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options

N117 Package Contents

CyberView N117 Package Contents
  • (1) N117 Console Drawer
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

N117 Resources

CyberView N117 Diagram N117 Brochure (PDF)
N117 Manual (PDF)
N117 Integrated KVM Manuals (Link)

N117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console27.1 lbs. (12.3 kg)
Console w/ KVM29.2 lbs. (13.3 kg)
Gross Weight
Single Console37 lbs. (16.8 kg)
Console w/ KVM40 lbs. (18.2 kg)
Mounting Distance
Single Console20.1 ~ 29.1 inch
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 inch
(510 ~ 840 mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )17"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms )5
Dot pitch ( mm )0.264
Display area ( mm )337.92H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

The N117e comes with an integrated touchpad, while the N117b comes with an integrated trackball.


N117 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView N117 with Matrix CAT6 KVM
Matrix CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
111-N117-MUIP1613N117-MUIP3213
121-N117-MUIP1614N117-MUIP3214
112-N117-MUIP1624N117-MUIP3224
110-N117-MU1602N117-MU3202
120-N117-MU1603N117-MU3203
130-N117-MU1604N117-MU3204

Austin Hughes CyberView N117 with Combo CAT6 KVM
CAT6 KVM		Local UserExtendedIP8-Port16-Port32-Port
101N117-UIP802N117-UIP1602N117-UIP3202
110N117-U802N117-U1602N117-U3202
100N117-U801N117-U1601N117-U3201

Austin Hughes CyberView N117 with DVI-D KVM
DVI-D KVM		Local UserExtendedIP12-Port
100N117-1201D

Austin Hughes CyberView N117 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
111N117-MIP813N117-MIP1613-
121N117-MIP814N117-MIP1614-
112N117-MIP824N117-MIP1624-
110N117-M802N117-M1602-
120N117-M803N117-M1603-
130N117-M804N117-M1604-

Austin Hughes CyberView N117 with VGA DB-15 KVM
VGA DB-15 KVM		Local UserExtendedIP8-Port16-Port32-Port
101N117-IP802N117-IP1602-
110N117-802N117-1602-
100N117-S801N117-S1601-

Austin Hughes CyberView N117 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub		Local UserExtendedIP8-Port16-Port32-Port
101N117-IP802HN117-IP1602H-
110N117-802HN117-1602H-
100N117-801HN117-1601H-

Austin Hughes CyberView N117 with PS2 DB-15 KVM
VGA PS/2 KVM		Local UserExtendedIP8-Port16-Port32-Port
100N117-801N117-1601-
