1U 17" Rack Mount Monitor Keyboard Drawer w/ 2-Console 16-Port Cat5 KVM Switch

N117-U1602

$2,546.00$2,231.00
Save $315.00
FREE Shipping on orders over $100
The N117-U1602 is a 1U Rackmount Monitor Drawer with 17" LCD, keyboard with trackball or touch-pad mouse and integrated 2-console 16 port Cat5 KVM Switch.

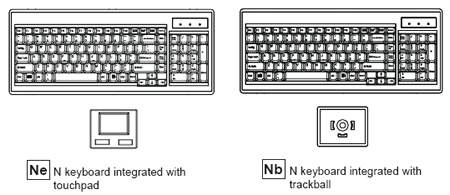

This model comes with either of the following keyboard options:

Keyboard Options

N117-U1602 Rackmount LCD Features:

  • 104 key keyboard with touchpad or trackball
  • 1U dual slide 17" LCD console drawer
  • Multi lingual on screen display menu
  • Enhanced aesthetics with new molded front panel and two point lock
  • Short depth design of 500mm (19.7") only

Two Console Cat5 KVM Switch Features & Benefits:

  • High density Cat5 KVM with 16 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Enhanced rear cable management using Cat5 cords
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
  • Mix legacy PS/2 servers with newer USB and Sun solutions
  • Multi lingual on screen display menu


Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions5.5 x 23.2 x 30.2 in.
(140 x 590 x 768 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.1 lbs. (12.3 kg.)
Gross Weight36 lbs. (16.5 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size17" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)250
Color Support16.2 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Active Area (mm)338 x 270
Signal InputVGA
KVM Port
Number of ports16
ConnectorRJ-45
ConnectivityDVI-D / VGA connector dongle up to 40 meters (132 ft) via Cat6/Cat5 cable
Local ConsoleNil for LCD sonsole drawer version
Remote I/O  RJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
ExpansionUp to 256 servers by 8-level cascade
Multi-platformMix PCs, SUN, Mac G3/G4 Mac/iMac
Windows 7/Vista/2003/XP, Linux, Unix
Regulatory ApprovalFCC, CE
