1U 19" LCD Keyboard Drawer w/ 8-Port PS/2 KVM

N119-801

$1,150.00

Discontinued
Replaced by: Cyberview N119-S801
Alternative options: Contact Us

The N119-801 is a 1U Rackmount Monitor Drawer with 19" LCD, keyboard with trackball or touch-pad mouse and 8 port PS/2 KVM switch.  Includes (8) CD-6 KVM Cables.

This model comes with either of the following keyboard options:

Keyboard Options

N119-801 Rackmount LCD Features:

  • 1U 17" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm (19.7") only
  • Enhanced aesthetics with molded front handle and two point lock

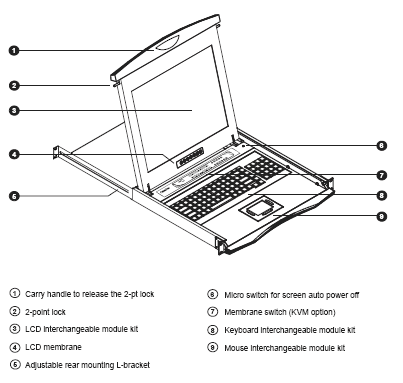

Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions5.5 x 23.2 x 30.2 in.
(140 x 589 x 768 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.5 lbs. (12.5 kg.)
Gross Weight37.4 lbs. (17 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m_)250
Color Support16.7 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Signal InputVGA
KVM Port
Number of ports8
ConnectorDB-15 combo connector
ConnectivityPS/2 3-in-1 KVM cable, up to 6, 10 & 15 feet
Local ConsoleNil for LCD console drawer version
Management
OSDEnglish
HotkeyScroll-lock
SecurityOassword enable & disable
PC SelectionFront button, OSD menu & hotkey
ExpansionUp  to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
KVM Power
InputAuto sensing 100 to 240VAC, 50 / 60 Hz
ConsumptionMax. 12 Watt, Standby 5 Watt
Regulatory ApprovalsFCC, CE
