1U 19" LED Rack Mount Monitor Keyboard Drawer w/ Touchpad or Trackball

N119

$871.00
Model: 19"
FREE Shipping on orders over $100

The N119 is a 1U Rackmount LCD Monitor with 19" LCD. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

Austin Hughes CyberView N119 Diagram

N119 Features & Benefits:

  • 1U 19" LCD console drawer
  • 1280 x 1024 native resolution / 16.7M colors
  • 104-key keyboard with either touchpad or trackball
  • Short depth design of 500mm ( 19.7" ) only
  • Enhanced aesthetics with molded front handle and two point lock

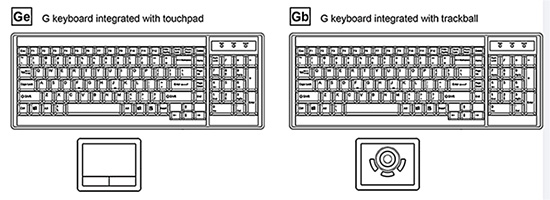

"Ne" style keyboard included with N119

Optional Configurations (Contact us for availability)

  • DVI-D / HDMI 1.2 video input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple integrated KVM Switch options

N119 Package Contents

CyberView N119 Package Contents
  • (1) N119 Console Drawer
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

N119 Resources

CyberView N119 Diagram N119 Brochure (PDF)
N119 Manual (PDF)
N119 Integrated KVM Manuals (Link)

N119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console27.5 lbs. (12.5 kg)
Console w/ KVM29.7 lbs. (13.5 kg)
Gross Weight
Single Console37.4 lbs. (17 kg)
Console w/ KVM40.5 lbs. (18.4 kg)
Mounting Distance
Single Console20.1 ~ 29.1 inch
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 inch
(510 ~ 840 mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

The N119 series is also known as the N-119. The N119e comes with an integrated touchpad, while the N119b comes with an integrated trackball.


N119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView N119 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
111-N119-MUIP1613N119-MUIP3213
121-N119-MUIP1614N119-MUIP3214
112-N119-MUIP1624N119-MUIP3224
110-N119-MU1602N119-MU3202
120-N119-MU1603N119-MU3203
130-N119-MU1604N119-MU3204

Austin Hughes CyberView N119 with Combo CAT6 KVM
CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
101N119-UIP802N119-UIP1602N119-UIP3202
110N119-U802N119-U1602N119-U3202
100N119-U801N119-U1601N119-U3201

Austin Hughes CyberView N119 with DVI-D KVM
DVI-D KVM
Local UserExtendedIP12-Port
100N119-1201D

Austin Hughes CyberView N119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
111N119-MIP813N119-MIP1613-
121N119-MIP814N119-MIP1614-
112N119-MIP824N119-MIP1624-
110N119-M802N119-M1602-
120N119-M803N119-M1603-
130N119-M804N119-M1604-

Austin Hughes CyberView N119 with VGA DB-15 KVM
VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
101N119-IP802N119-IP1602-
110N119-802N119-1602-
100N119-S801N119-S1601-

Austin Hughes CyberView N119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local UserExtendedIP8-Port16-Port32-Port
101N119-IP802HN119-IP1602H-
110N119-802HN119-1602H-
100N119-801HN119-1601H-

Austin Hughes CyberView N119 with PS2 DB-15 KVM
VGA PS/2 KVM
Local UserExtendedIP8-Port16-Port32-Port
100N119-801N119-1601-
Question: i have this model N119b with the two button touchpad, how can i enable a third button (middle)?
Answer: Thank you for your inquiry,

Unfortunately Cyberview does not have a driver available to enable the middle button - it is used in the Sun Solution model can use middle button for trackball (NS119b).

Question: Can this be mounted in a two post rack?
Answer: Thank you for your inquiry,

You can indeed mount the N119 into a 2-post rack using the MB-751-12 mounting kit:

N119
Min Mounting Depth: 17.5"
Max Mounting Depth: 30.5"
Unit Depth: 19.7"
2 Post Mounting Kit: MB-751-12

We do not currently have that kit online, but please feel free to contact your KVM Switches Online sales representative directly for a pricing quote.
