1U 17" Rack Mount Monitor Sun Keyboard Drawer w/ 8-Port KVM Switch

NS117-S801

$1,307.00
FREE Shipping on orders over $100

The NS117-S801 is a 1U Rackmount Monitor Drawer with 17" LCD and SUN keyboard with trackball or touch-pad mouse, and integrated 8 port USB KVM Switch. Includes (8) CB-6 KVM Cables.

NS117-S801 is the replacement for the discontinued NS117-801. For PS/2 sources please order CE PS/2 cables.

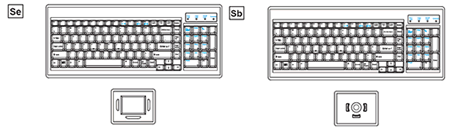

This model comes with either of the following keyboard options:

Keyboard Options

NS117-S801 Rackmount LCD Features:

  • 1U 17" LCD console drawer
  • Direct support for SUN Micro 1152 x 900 native resolution
  • 10-key keyboard with SUN hotkeys
  • Mix USB & SUN with Multi- Platform switch capability
  • Secure remote user access across the world wide web
  • Cost efficient DB-15 USB KVM integration
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Multi lingual on screen display menu
  • Enhanced aesthetics wi th molded front handle and two point lock



    Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions6.6 x 23.2 x 30.2 in.
(168 x 589 x 768 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.1 lbs. (12.3 kg.)
Gross Weight36 lbs. (16.5 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size17" TFT
Resolution1152 x 900 (Direct)
Brightness (cd/m_)250
Color Support16.2 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)338 x 270
Signal InputVGA or DVI-D
Plug & Play DDCEDID 1.3
Console ConnectivityCombo 4-in-1 KVM cable up to 6, 10, & 15 ft
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
Regulation ApprovalFCC, CE
