1U 17" Rack Mount Monitor Sun Keyboard Drawer with Samsung TFT LCD

NS117

$947.00
Model: 2-Point Lock
Screen Size: 17"
FREE Shipping on orders over $100

The NS117 is a 1U Rackmount Monitor Drawer with 17" LCD and SUN keyboard with trackball or touch-pad mouse.

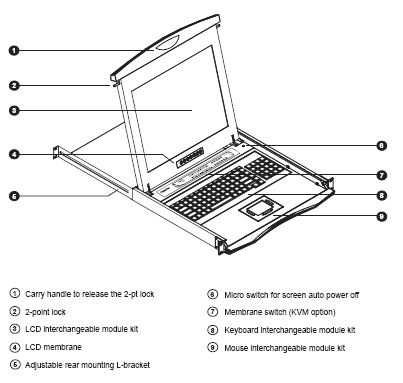

Austin Hughes CyberView NS117 DiagramStructural Diagram

NS117 Rackmount LCD Features:

  • Multiple cost efficient integrated KVM Switch options
  • Direct support for SUN Micro 1152 x 900 native resolution
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 500mm (19.7") only
  • Secure remote user access across the world wide web
  • Enhanced aesthetics with molded front handle and two point lock
  • Slide rails with fixed positions to prevent drawer movement when typing

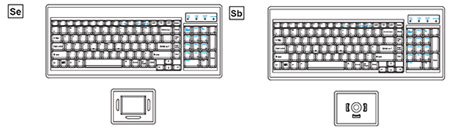

This model comes with either of the following keyboard options:

NS117 SUN Keyboard Options

Optional Configurations (Contact us for availability)

NS117 Package Contents

CyberView NS117 Package Contents
  • (1) NS117 Console Drawer
  • (1) CX-6 6ft DVI-D console cable (or optional CB-6 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

NS117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 19.7 in.
(44 x 442 x 500 mm.)
Console w/ KVM1.73 x 17.4 x 24.4 in.
(44 x 442 x 620 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console27.1 lbs. (12.3 kg)
Console w/ KVM29.2 lbs. (13.3 kg)
Gross Weight
Single Console37 lbs. (16.8 kg)
Console w/ KVM40 lbs. (18.2 kg)
Mounting Distance
Single Console20.1 ~ 29.1 in
(510 ~ 740 mm)
Console w/ KVM20.1 ~ 33.1 in
(510 ~ 840 mm)
Console Ports
Video InputVGA + DVI-D single link
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal )17"
Backlight typeLED
Direct resolution1152 x 900
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms )5
Dot pitch ( mm )0.264
Display area ( mm )337.92H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

NS117 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView NS117 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
111-NS117-MUIP1613NS117-MUIP3213
121-NS117-MUIP1614NS117-MUIP3214
112-NS117-MUIP1624NS117-MUIP3224
110-NS117-MU1602NS117-MU3202
120-NS117-MU1603NS117-MU3203
130-NS117-MU1604NS117-MU3204

Austin Hughes CyberView NS117 with Combo CAT6 KVM
CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
101NS117-UIP802NS117-UIP1602NS117-UIP3202
110NS117-U802NS117-U1602NS117-U3202
100NS117-U801NS117-U1601NS117-U3201

Austin Hughes CyberView NS117 with DVI-D KVM
DVI-D KVM
Local UserExtendedIP12-Port
100NS117-1201D

Austin Hughes CyberView NS117 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
111NS117-MIP813NS117-MIP1613-
121NS117-MIP814NS117-MIP1614-
112NS117-MIP824NS117-MIP1624-
110NS117-M802NS117-M1602-
120NS117-M803NS117-M1603-
130NS117-M804NS117-M1604-

Austin Hughes CyberView NS117 with VGA DB-15 KVM
VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
101NS117-IP802NS117-IP1602-
110NS117-802NS117-1602-
100NS117-S801NS117-S1601-

Austin Hughes CyberView NS117 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local UserExtendedIP8-Port16-Port32-Port
101NS117-IP802HNS117-IP1602H-
110NS117-802HNS117-1602H-
100NS117-801HNS117-1601H-

Austin Hughes CyberView NS117 with PS2 DB-15 KVM
VGA PS/2 KVM
Local UserExtendedIP8-Port16-Port32-Port
100NS117-801NS117-1601-
