1U 17" Sun Keyboard Drawer w/ 2-Console 16-Port CAT6 IP KVM

NS117-UIP1602

$1,726.00
FREE Shipping on orders over $100
The NS117-UIP1602 is a 1U Rackmount Monitor Drawer with 17" LCD and SUN keyboard with trackball or touch-pad mouse, and integrated 2-console, 16 port IP Cat5 KVM Switch.

This model comes with either of the following keyboard options:

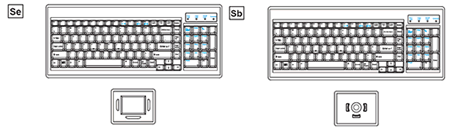

Keyboard Options

NS117-UIP1602 Rackmount LCD Features:

  • 1U 17" LCD console drawer
  • Direct support for SUN Micro 1152 x 900 native resolution
  • 104-key keyboard with SUN hotkeys
  • Mix USB & SUN with Multi- Platform switch capability
  • Secure remote user access across the world wide web
  • Cost efficient DB-15 USB KVM integration
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Short depth design of 500 mm (19.7") only
  • Multi lingual on screen display menu
  • Enhanced aesthetics with molded front handle and two point lock

IP Cat5 KVM Switch Features & Benefits:

  • High density Cat5 KVM with either 16 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Secure remote user access across the world wide web
  • Mix legacy PS/2 servers with newer USB and Sun solutions
  • Multi lingual on screen display menu

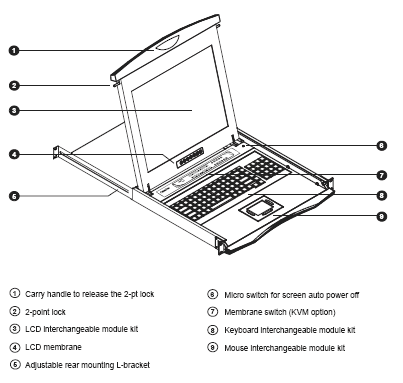

Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions5.5 x 23.2 x 30.2 in.
(140 x 589 x 768 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.1 lbs. (12.3 kg.)
Gross Weight36 lbs. (16.5 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size17" TFT
Resolution1152 x 900 (Direct)
Brightness (cd/m_)250
Color Support16.2 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)338 x 270
Signal InputVGA or DVI-D
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
KVM Port
Number of ports16
ConnectorRJ-45
ConnectivityDVI-D/VGA connector dongle up to 40 meters (132 ft) via Cat6/Cat5 cable
Local ConsoleNil for LCD console drawer version
Remote Console
ConnectorRJJ45 Ethernet
Network protocolDHCP/BOOTP/DNS
ResolutionUp to 1600x1200
BrownserIE, Firefox, Safari, Netscape
ExpansionUp to 256 servers by 8-level cascade
KVM Power
InputAuto sensing 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
ConsumptionMax. 48 Watt, Standby 5 Watt
Regulatory ApprovalsFCC, CE
