1U 19" Sun Keyboard & Monitor Drawer w/ 16-Port Cat5 KVM Switch

NS119-U1601

$1,475.00
FREE Shipping on orders over $100
The NS119-U1601 is a 1U Rackmount Monitor Drawer with 19" LCD, SUN Keyboard with trackball or touch-pad mouse and integrated 16 port Cat5 KVM switch.

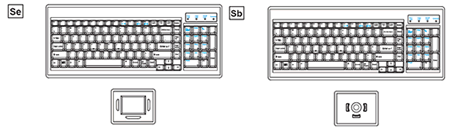

This model comes with either of the following keyboard options:

Keyboard Options

NS119-U1601 Rackmount LCD Features:

  • 1U 19" LCD console drawer
  • Direct Support for SUN Micro 1152x900 native resolution
  • Secure remote user access across the world wide web
  • 104-key keyboard with SUN hotkeys
  • Short depth design of 500mm (19.7") only
  • Enhanced aesthetics with molded front handle and two point lock

Cat5 KVM Switch Features & Benefits:

  • High density Cat5 KVM with either 16 ports in 1U
  • Increased distance of 40m between your server & KVM switch
  • Mix PS/2, USB & SUN with Multi- Platform switch capability
  • Mix legacy PS/2 servers with newer USB and Sun solutions
  • Multi lingual on screen display menu

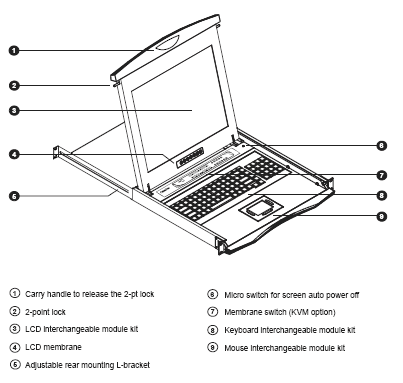

Structural Diagram

Specifications:

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth19.7 in. (500 mm.)
Package Dimensions5.5 x 23.2 x 30.2 in.
(140 x 589 x 768 mm.)
Form Factor1U rack mounting on slide-out rails
Net Weight27.5 lbs. (12.5 kg.)
Gross Weight37.4 lbs. (17 kg.)
Environmental
Operating Temperature0° to 50°C Degree
Storage Temperature-5° to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC, 50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Resolution1280 x 1024 (Native)
Brightness (cd/m2)250
Color Support16.7 M
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Signal InputVGA or DVI-D
Regulation ApprovalcUL, FCC, & CE certified
KVM Switch
Ports16
ConnectorRJ-45
ConnectivityDVI-S/VGA connector dongle up to 40 meters (132 feet) via Cat6/Cat5 cable

Local Console

Nil for LCD console drawer version
Multilingual OSDEnglish, France, German, Spanish, Italian, Russian, Chinese, Japanese
ExpansionUp to 256 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
