NTI Rackmount 17" 1RU DVI SUN USB KVM Drawer
RACKMUX-DS17-NT
The NTI RACKMUX-DS17-NT DVI SUN USB KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.
NTI RACKMUX-DS17-NT Features and Benefits:
- Forward-folding 17" Active Matrix LCD flat panel DVI monitor.
- Supports SUN-compatible 1152x900 resolution.
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large wrist-rest.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Available with optional mounting bracket for two-post style telco rack.
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in closed position.
- Internal cable arm provides proper cable management for sliding the drawer open and closed.
- Equipped with On Screen Display (OSD).
- Designed to be a one-person job when installing the drawer.
- Front panel security lock.
- Front panel USB port to connect an external USB device, such as a flash drive.

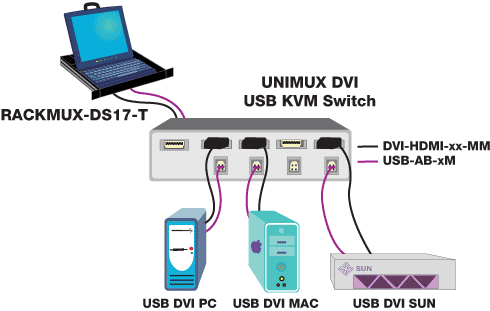

NTI Rackmount DVI SUN USB KVM Drawer Diagram
(RACKMUX-DS17-T depicted here)
NTI RACKMUX-DS17-NT Package Content:
- 1 RACKMUX-DS17-NT Drawer with DVI Video Support
- USB-AB-2M 2m USB Type A to USB Type B M-M cable
- DVI-DS-2M-MM 2m DVI video cable
- IEC Power Cord
- 2 Keys for Lock
- 2 Rear Mounting Brackets with nuts
- 8 #10-32x3/4" screws and cage nuts for mounting rack
- CD with a PDF file of owner's manual and installation guide
NTI RACKMUX-DS17-NT Specifications:
| Mechanical | |
| Width | 19 in. |
| Height | 1.75 in. |
| Depth | 23.9 |
| Weight | 26 lbs. |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Host Interface | |
| Compatibility | USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers with DVI-D single link video |
| Connectors | 1 x DVI-I; 1 x USB Type B |
| Monitor | |
| Type | 17" Active Matrix LCD flat panel DVI |
| Resolution | 1280 x 1024 |
| Tilt | Up to 120° |
| Frequency | Horizontal: 31-80 KHz; Vertical: 56-76 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 500:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 114-key (US) SUN-compatible keyboard with numeric keypad |
| Mouse | Three-button trackball |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Power Consumption | 30W |
| Regulatory Approvals | CE, RoHS |
