17" VGA USB + PS/2 Rackmount KVM Drawer with Mouse
RACKMUX-V17-MP
The NTI RACKMUX-V17-MP USB + PS/2 KVM Drawer with Real Mouse combines an LCD monitor, keyboard, and real mouse with mouse pocket. This NTI RACKMUX-V17-MP KVM drawer is ideal for anyone who prefers using a real mouse to touchpads or trackballs. The low, 1RU (1.75 in.) profile saves space in crammed server racks. Connect this compact data entry drawer to a KVM switch for convenient control of all attached computers.
NTI RACKMUX-V17-MP Features and Benefits:
- Allows users to store and use a real mouse.
- 17 in. (432 mm) TFT panel active matrix LCD display monitor.
- Compatible with USB and PS/2 computers.
- Torque-friction hinges - monitor does not wobble, spring, or slam shut.
- Features smooth-action ball bearing rackmount slides.
- Rugged steel construction with durable powder coat finish.
- LCD auto-shutoff in the closed position.
- Internal cable arm provides proper cable management for sliding the drawer open and closed.
- Equipped with On Screen Display (OSD).

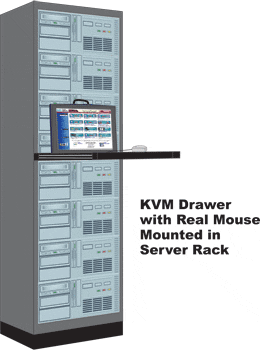

NTI Rackmount VGA USB + PS/2 KVM Drawer with Real Mouse Example
(RACKMUX-V17-MP depicted here)
NTI RACKMUX-V17-MP Specifications:
| Mechanical | |
| Width | 19 in. (483 mm) |
| Height | 1.75 in. (44 mm) |
| Depth | 29.7 in. (754 mm) |
| Weight | 32.6 lbs. (15 kg.) |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 - 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% non-condensing RH |
| Power | 110 to 220VAC, 50/60Hz via AC adapter |
| Host Interface | |
| Compatibility | PS/2, UNIX, and USB computers |
| Connectors | 5 ft. attached cables with 1 x 15-pin HD, 2 x 6-pin miniDIN, 1 x USB Type A |
| Monitor | |
| Type | Active matrix LCD flat panel VGA; backward-folding |
| Resolution | 1280 x 1024 |
| OSD Controls | Brightness, contrast, phase, pitch, Horz- and Vert- center alignment, zoom, and color adjustment |
| Frequency | Horizontal: 31-80 KHz; Vertical: 60-85 KHz |
| Brightness | 300 nits |
| Contrast Ratio | 500:1 |
| Protocol Support | DDC1 and DDC2B |
| Devices | |
| Keyboard Available | 83-key (US) |
| Mouse | Three-button optical mouse |
| USB Connectors | Front panel USB 1.1 port (for external USB devices) |
| Regulatory Approvals | CE, RoHS |
