NTI SUN USB 17 " LCD Rackmount Console

RACKMUX-VS17-NT

$1,770.00$1,627.59
Save $142.41
FREE Shipping on orders over $100

The NTI RACKMUX-VS17-NT is a SUN USB KVM Drawer that combines a rackmount LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.

NTI RACKMUX-VS17-NT's Features & Applications:

  • Forward-folding 17" Active Matrix LCD flat panel VGA monitor.
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Optional sunlight readable monitor available.
  • Supports SUN-compatible 1152x900 resolution.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard.
  • Available with 17-key numeric keypad or large wrist-rest.
  • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Available with optional mounting bracket for two-post style telco rack.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Equipped with On Screen Display (OSD).
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.

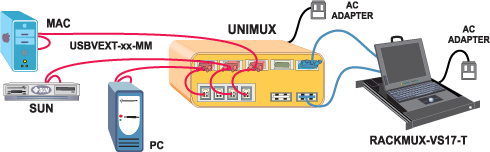

NTI RACKMUX-VS17-NT Diagram
NTI - RACKMUX-VS17-NT - Diagram

NTI RACKMUX-VS17-NT's Specifications:

Mechanical
Height 19 in. (48.3 cm.)
Width 23.9 in. (60.7 cm.)
Depth 1.75 in. (4.4 cm.)
Weight 26 lbs. (57.2 kg.)
Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Power
Operating Voltage 110 or 220 VAC at 50 or 60 Hz via IEC connector
Maximum Inrush Current 30A
Power Consumption 30W
Supported Hardware
Keyboard 97-key (US), SUN-compatible keyboard with wrist-pad.
Monitor Resolution 1280 x 1024
Monitor Frequency Horizontal: 31 to 80 KHz
Vertical: 56 to 76 Hz
Contrast Ratio 500:1
Host Interface Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers
Standards
Approved Agency CE, RoHS
