NTI Hi-Res VGA USB KVM Extender via CAT5 with Additional USB & Audio

ST-C5USBVUA-1000S

$950.00$873.56
Save $76.44
FREE Shipping on orders over $100

Download the
ST-C5USBVUA-1000S Manual (PDF)
The XTENDEX ST-C5USBVUA-1000S VGA USB KVM Extender provides local and remote KVM (USB keyboard, USB mouse and VGA monitor) access to a USB computer or NTI KVM switch up to 1,000 feet using CAT5/5e/6 UTP cable. Each ST-C5USBVUA-1000S consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote NTI ST-C5USBVUA-1000S units are interconnected via CAT5/5e/6 cable.

NTI XTENDEX ST-C5USBVUA-1000S Features and Benefits:

  • Industry-leading ultra high resolutions up to 2048x1536.
  • High quality, rugged steel construction with durable powdercoat finish.
  • Automatically adjust video quality and color skew for crystal clear video with longer cables.
  • DDC2B emulation support for remote monitor.
  • Built-in surge protection.
  • Includes stereo audio and/or additional USB 2.0 (low/full speed) port for local and remote user.
    • For the additional USB port on the local unit, connect any type of USB device (fully transparent USB connection).
    • For the additional USB port on the remote unit, use to connect a USB printer, touch screen monitor, interactive whiteboard, or CAC card reader.


NTI XTENDEX ST-C5USBVUA-1000S Diagram

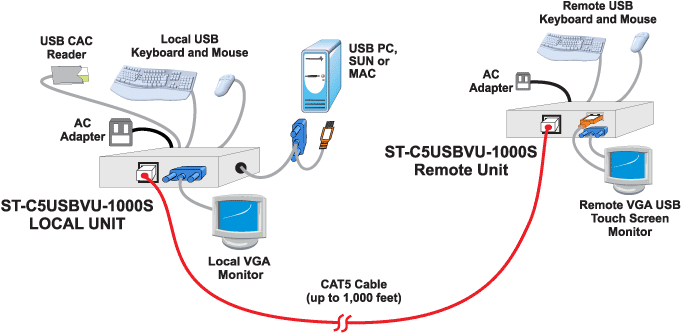

NTI XTENDEX Hi-Res VGA USB KVM Extender via CAT5 Diagram
(ST-C5USBVU-1000S depicted here)

NTI XTENDEX ST-C5USBVUA-1000S Package Content:

  • 1 ST-C5USBVUA-1000S Local Unit
  • 1 ST-C5USBVUA-1000S Remote Unit
  • 1 USB2-AB-1M-5T 1m USB Type A male to USB Type B male Cable
  • 2 120-240VAC, 50/60Hz, 5VDC, 3A AC Adapters
  • 1 DB9 Female to RJ45 Female Adapter
  • 1 5 ft. RJ45 to RJ45 CAT5 patch cable
  • 1 CD containing User Manual

NTI XTENDEX ST-C5USBVUA-1000S Specifications:

Mechanical
Width5.1 in.
Height1.2 in.
Depth3.1 in.
Environmental
Operating Temperature32 to 100°F (0 to 38°C)
Storage Temperature-20 - 140°F (-30 to 60°C)
Operating Humidity17 to 90% non-condensing RH
Power Consumption100V-240VAC @ 50/60Hz-5VDC/2.0A
Video
Video CompatibilitySVGA, XGA, VGA
Video QualityVariable for up to 1000 feet of CAT5 cable
Video CouplingDC
Video ConnectorsHD15 to CPU; HD15 to monitors
Sync Types SupportedSeparate and composite TTL level
Video Signal TypeAnalog RGBHV, RGBS, RGsB
Audio
Audio Connectors3.5mm stereo jack (lime) to speakers;
3.5mm stereo plug (lime) to CPU
Signal TypeLine Level, stereo, unbalanced
Audio Frequency Response20Hz to 20kHz
Signal-to-Noise Ratio>76 dBA
Stereo Crosstalk-70 dB @ 1kHz
Audio Maximum I/O Levels3.1Vp-p
Maximum Load2k Ohms, unbalanced
Input Impedance10k Ohms
Total Harmonic Distortion & Noise0.017%,F=20-20KHz, RL=2K Ohm, Vout=1 Vrms
IRR
Maximum Input/Output Levels1.45Vp-p (no offset)
Input Impedance75 Ohms
Output Impedance75 Ohms
Input Horzontal Frequency Range15kHz to 150 Hz
Input Vertical Frequency Range30 Hz to 150 Hz
General
Interconnect CableCAT5/5e/6 Solid UTP/STP EIA/TIA 568B wiring w/ male RJ45 connectors
Question: where can I find the pdf procedure - card inside box says http://www.networktechinc.com/pdf/man063.pdf but this no longer works in explorer or chrome
Answer: Thank you for your inquiry. We have uploaded a copy of the manual to the product page. You should also be able to download the file from here: http://www.42u.com/pdf/nti-xtendex-man063.pdf
