VGA Video/Audio Extender via CAT5 - Extend to 300 ft.


Save $34.20
FREE Shipping on orders over $100

The XTENDEX Mini HDMI Extender transmits digital video and audio signals up to 164 feet (50 meters) using one CAT6/6a/7 cable. Each extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

Product Features and Benefits

  • Ideal solution for digital signage applications.
  • Supports local and remote VGA monitors.
  • Supports resolutions to 1920x1440.
  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Built-in surge protection.
  • Stereo audio enabled.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Use in-house CAT5/5e/6/6a phone wiring to locate a monitor remotely.
  • Optional VESA mounting bracket is available for mounting the local or remote unit to the back of a flat panel monitor.

Package Includes

  • One transmitter unit
  • One receiver unit
  • User Manual

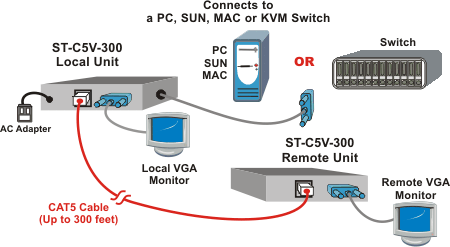

Local Unit
Host ConnectionSupports a PC, SUN, MAC or NTI switch with VGA video.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Male 15-pin HD connector for computer connection.
Stereo audio support - 3.5 mm stereo plug
Local AccessCrisp and clear 1920x1440 video resolution.
Female 15-pin HD connector for local VGA monitor.
Optional stereo audio support - 3.5 mm stereo jack.
Remote Unit
ResolutionSupports resolutions up to 1920x1440; dependent on extension length
ConnectionFemale 15-pin HD connector.
3.5 mm stereo audio connection
Local Unit110 or 220 VAC at 50 or 60 Hz via AC adapter (included)
Remote UnitPowered from local unit via CAT5/5e/6/6a cable.
Consumption10W Local, Remote powered from local.
Dimensions(WxDxH)3.5 x 3.1 x 1.2 in (89 x 79 x 30 mm)
Weight2.0 lbs. (0.90 kg)
ApprovalsCE, RoHS
WarrantyTwo Years
Operating Temperature32 to 100°F (0 to 38°C)
Storage Temperature-20 to 140°F (-30 to 60°C)
Humidity17-90% Non-Condensing
