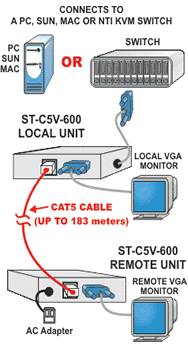

NTI's XTENDEX VGA Extender (ST-C5VA-600) extends a VGA monitor up to 183 meters away from a computer using CAT5 cable. Each video extender consists of a local unit connected to a computer or the output of an NTI switch, and a remote unit connected to a monitor or the input of an NTI switch.
NTI XTENDEX VGA Extender
Built-in surge protection.
Access information from network servers.
Use in-house CAT5 phone wiring to locate a monitor remotely.
Supports any VGA monitor.
|Supports a PC, SUN, MAC or NTI Switch.|
|Male 15-pin HD connector for computer connection.|
|Optional RS232 support - female 9-pin D connector.|
|Optional stereo audio support - 3.5mm stereo plug.|
|Crisp and clear 1920x1440 video resolution.|
|Female 15-pin HD connector for local VGA monitor.|
|Optional RS232 support - male 9-pin D connector.|
|Optional stereo audio support - 3.5mm stereo jack.|
|110 or 220 VAC at 50 or 60 Hz via AC adapter.|
|Crisp and clear 1024x768 resolution at 183 meters; higher resolution supported at shorter distances.|
|Female 15-pin HD connector.|
|Optional 3.5mm stereo audio connection.|
|Optional male 9-pin D connector for RS232|
|Video Quality Adjustment|
|Push buttons on the side adjust video quality.|
|Video quality adjustment for different lengths of CAT5 cable is done manually for video-only extender and automatically for audio/video or video/RS232 extender. |
The setting is automatically saved to the unit. The next time the unit is powered the adjustment will be recalled.
|110 or 220 VAC at 50 or 60 Hz via AC adapter|
Stereo audio can be heard both locally and remotely.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70 dB.
Input impedance: 10k Ohms.
Line level output; supports multimedia speakers.
Maximum I/O levels: 3.1Vp-p (line level)
Supports TXD, RXD, DTR, DSR, CTS and RTS.
Baud rate up to 56000.
Support for a touch screen monitor
