NTI DVI Extender with IR via One CAT5/6/7

ST-C6DVI-IR-300

$420.00$386.21
Save $33.79
FREE Shipping on orders over $100

The XTENDEX ST-C6DVI-IR-300 DVI Extender transmits digital DVI video and IR signal up to 300 feet away from a DVI source over a single CAT5/6/7 cable. The ST-C6DVI-IR-300 video extender consists of a local unit that connects to a single link digital DVI source and IR emitter, and a remote unit that connects to a DVI display and IR receiver.

NTI XTENDEX ST-C6DVI-IR-300 Features and Benefits:

  • Transmits all signals over one CAT5/6/7 cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Full IR control of DVI source from remote HDTV using existing source remote control.
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • High quality, rugged steel construction with durable powder coat finish.
  • Only one power supply is necessary to power both the local and remote units.

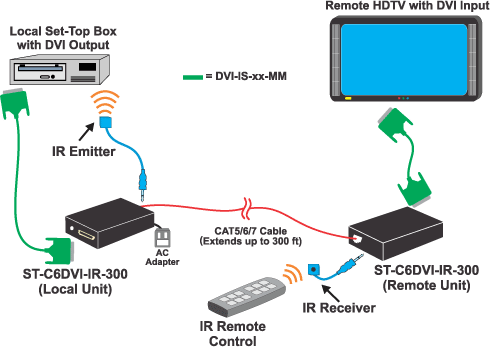

NTI ST-C6DVI-IR-300 Diagram
NTI DVI Extender with IR via One CAT5/6/7 Diagram
(ST-C6DVI-IR-300 depicted here)

NTI XTENDEX ST-C6DVI-IR-300 Specifications:

Mechanical
Width3.09 in.
Height1.08 in.
Depth3.49 in.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-20 to 140°F (-30 to 60°C)
Operating/Storage Humidity17 to 90% non-condensing RH
Power Consumption10 W
Video
Video CompatibilityPC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080p
Video ConnectorsDVI-I
Input Video SignalTMDS
Video Color FormatStandard (24bit)
DVI SupportDVI 1.0
DDC SupportDDC2b
HDCP VersionHDCP 1.2
IR
Input/Output3.5mm Stereo Jack
Signal TypeTTL, 0-5VDC
Input Impedance1.5 kohm
Output Impedance33 ohm
Maximum Input/Output Level5.2 Vp-p
Center Carrier Frequency36kHz
Frequency Range33-40kHz
Maximum Distance (fron receiver)14 ft. straight; 6 ft. at 45 degree angle
General
Interconnect CableCAT5e solid/stranded UTP (550 MHz or better);
CAT6/6a Solid UTP; CAT7 Solid STP EIA/TIA
568 B wiring with male RJ45 connectors
Compliance CertificationsCE, RoHS
