NTI DVI-D Dual Link Extender via Two Fiber Optic Cables

ST-2FODVIDD-LC

$1,535.00$1,411.49
Save $123.51
FREE Shipping on orders over $100

The NTI XTENDEX ST-2FODVIDD-LC DVI-D Dual Link Extender via Fiber Optic Cable extends a digital flat panel display up to 1,640 feet (500 meters) away from a DVI-D dual link video source using a 2-strand fiber optic cable. Each DVI optical extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

NTI XTENDEX ST-2FODVIDD-LC Features and Benefits:

  • Supports uncompressed 2560x1600 WQXGA and 3840x2400 WQUXGA resolutions for dual link devices.
  • Signal transmission via two-strand multimode LC fiber optic cable - no RF interference.
  • Small form factor - allowing for easy connection and placement.
  • Cables can be installed in conduit prior to extender installation.
  • Virtual DDC by self-EDID programming.
  • Low RFI/EMI for sensitive applications.
  • No software to install.

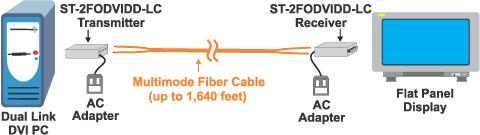

NTI XTENDEX ST-2FODVIDD-LC Diagram
NTI DVI-D Dual Link Extender via Two Fiber Optic Cables Diagram
(ST-2FODVIDD-LC depicted here)

NTI XTENDEX ST-2FODVIDD-LC Specifications:

Mechanical
Width1.54 in.
Height0.59 in.
Depth2.83 in.
Power
AC Adapter110 to 240VAC, 50/60 Hz
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-22 to 158°F (-30 to 70°C)
Remote Unit
Connectors1 x DVI-D Dual Link;
2 x LC Fiber
ResolutionsHDTV: Up to 1080p; Computer: Up to 3840 x 2400
Local Unit
Connectors1 x DVI-D Dual Link;
2 x LC Fiber
Regulatory ApprovalsFCC, RoHS
