NTI USB Extender, 150ft (outlet powered)

USB-C5-LCPA

$44.00
Model: Outlet-Powered
FREE Shipping on orders over $100

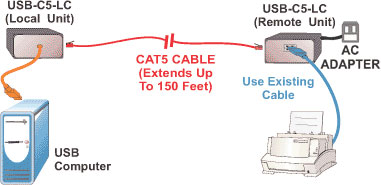

The NTI USB Extender USB-C5-LCPA extends one USB device up to 150 feet. The USB extenders consist of two units, the local unit and the remote unit, which are interconnected with CAT5/5e/6 cable. The Local and Remote Units are powered via AC adapter connected to the Remote unit.

  • Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printer, scanner, keyboard, etc.).
  • Transparent data extension.
  • Compatible with USB computers (PC, SUN, MAC).
  • Compliant with USB 1.1 (low/full speed) specifications.
  • Supports Plug-n-Play specification.
  • The USB-C5-LCPA is a outlet powered (500mA) version of the NTI Xtendex series. For USB devices with lower power requirements, see the line powered (400mA) version: USB-C5-LC.

NTI USB Extender (USB-C5-LCPA)

NTI USB-C5-LCPA USB Extender

USB-C5-LCPA Specifications:

Local Unit
ConnectionOne male USB Type A connector.
BandwidthProvides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
Dimensions1.34W x 2.28D x 0.98H
Remote Unit
ConnectionOne female USB Type A connector.
BandwidthProvides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
Dimensions1.34W x 2.28D x 0.98H
Multiplatform Support
 Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10..
USB Devices
 Supports low-speed and full-speed USB devices.
 USB 1.1 compliant.
 Supports self-powered and/or bus-powered USB devices
Power
Local UnitPowered via CATx cable from the Remote unit.
Remote Unit110 to 220 VAC at 50 or 60 Hz via AC adapter.
Environmental/Regulatory
Operating Temperature32 to 100F (0 to 38C)
Storage Temperature-20 to 140F (-30 to 60C)
HumidityOperating and Storing: 17 to 90% non-condensing RH.
Regulatory ApprovalsCE, RoHs
Warranty2 Years
CablesUse CAT5/5e/6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
-Use of CAT6 cable may decrease the maximum length of extension.
