USB 2.0 Extender via CAT5: Extend to 100 Feet

USB2-C5-LC

$75.00$68.97
Save $6.03

End-Of-Life (EOL)
For stock: Contact Us

The XTENDEX USB2-C5-LC USB 2.0 Extender extends one USB device up to 100 feet using CAT5e/6 cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a USB device. The local and remote units are interconnected via CAT5e/6 cable.

  • Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printer, scanner, keyboard, etc.).
  • Extend up to 200 feet by using two CAT5e/6 cables to connect the extender to an Ethernet switch.
    • The local unit connects to the Ethernet switch using a single CATx cable up to 100 feet. The remote unit extends from the Ethernet switch using a separate CATx cable up to 100 feet.
  • Transparent data extension.
  • Supports high-speed (150 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Compliant with USB 2.0 specifications.
  • Supports Plug-n-Play specification.

USB 2.0 Extender via CAT5: Extend to 100 Feet

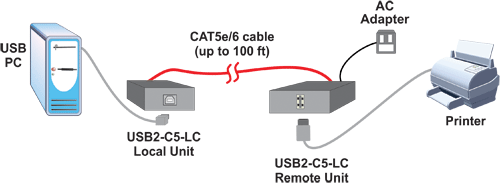

USB 2.0 Extender via CAT5: Extend to 100 Feet

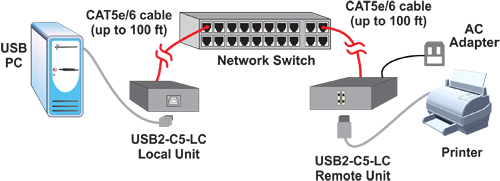

USB 2.0 Extender via CAT5: Extended to 200 Feet using Network Switch
Extend out to 200 feet using a network Switch

Local Unit

  • One male USB Type B connector.
  • Compatible with PCs or laptops (Windows XP/Vista/7).
        Supports 32- and 64-bit operating systems.

Remote Unit

  • One female USB Type A connector
  • Supports high-speed (150 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Supports self-powered and/or bus-powered USB devices.

Package Includes

  • USB Extender (local and remote unit)
  • USB Type A to Type B male-to-male cable
  • User manual
  • US AC adapter
  • CD with installation drivers

USB2-C5-LC Specifications:

MechanicalLocal UnitRemote Unit
Height .98 in. (4.0 cm.).91 in. (4.0 cm.)
Width 1.57 in. (13.2 cm.)1.69 in. (13.2 cm.)
Depth2.01 in. (10.9 cm.)3.19 in. (10.9 cm.)
Powerpowered by CAT5 cable from remote unit110 or 220 VAC at 60 or 50 Hz via AC adapter.
Cable Requirements
CATX Cable not included
Use CAT5e/6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors to extend up to 100 feet.  (cable not included)
 Extend up to 200 feet by using two CAT5e/6 cables to connect the extender to an Ethernet switch.
(cable and switch  not included)
Regulatory Approvals:CE, RoHS
WarrantyTwo years
Question: Why does it need drivers? I've got an usb device and usb host that needs to see this device (neither windows nor linux). So the local device needs to recreate exact USB signal. Will it work transparently?
Answer: Thank you for your inquiry,

The USB2-C5-LC requires drivers which are only available for Window OS's. For a Windows source, once connected to computer, the USB2-C5-LC unit can be found in Device Manager under Network adapters and not as a USB controller. The device connected to the remote unit should work normally as if directly connected to the computer.

For a USB 2.0 Extender that extends USB transparently and works with virtually any OS without any drivers, you may be interested in the similar Icron Ranger 2311 instead.

Please let us know if there is anything else we can help you with!

Question: Do you have drivers for Linux
Answer: Thank you for your inquiry,

The USB2-C5-LC only has drivers available for Window OS's. For a USB 2.0 Extender that extends USB transparently and works with virtually any OS (including Linux) without any drivers, you may be interested in the similar Icron Ranger 2311 instead.

Pease let us know if there is anything else we can ever help you with!
