4-Port HDMI HDBase-T AV Splitter/Extender via CAT5e/6 - 230 ft.



For upgrade or replacement options: Contact Us

The VOPEX HDMI HDBase-T Splitter/Extender simultaneously distributes uncompressed HD 1080p, multi-channel audio, Ethernet, and IR from one video source to up to four displays and speakers, each located up to 230 feet away via CAT5e/6 cable using HDBase-T technology. The VOPEX system consists of two components: the HDMI HDBase-T broadcast unit, which connects to the HDMI source, and a remote unit for each remote HDMI display and speakers.

Product Features and Benefits

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6 cable to multiple display locations.
  • Features two Ethernet ports on the transmitter and receiver for connecting standard network devices such as 100Base-T routers and hubs.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1080 and 1920x1200.
  • HDMI features supported:
    • 36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM.
    • 3D - Bandwidth up to 225 MHz (6.75 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Full Infrared Remote (IR) control of HDMI source from remote display.
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.

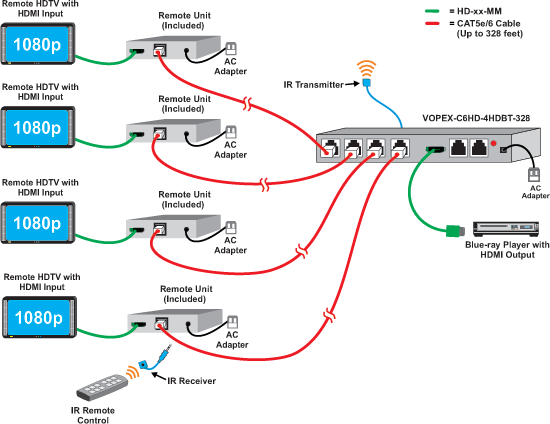

Product Diagram

Package Includes

  • HDMI HDBase-T Splitter/Extender
  • HDBase-T remote units - Four with 4-port
  • IR transmitter - One
  • IR receivers - Four with 4-port
  • One 9V power supply
  • 5V power supplies - Four
  • User manual
Local Units
Video1 x HDMI Female; Compatible with a computer or HDTV video source with HDMI output.
IR1 x 3.5mm port
Control2 x Female RJ-45 for Network Device.
Send/Recieve4 x RJ-45 for Sending/Recive HD Video/Audio
Remote Unit
ResolutionsSupports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Video1 x HDMI Female
IR2 x 3.5mm for IR Trans/Rec
Control2 x RJ-45 for Network Device
Send/Recieve1 x RJ-45 Female for Sending/Recive HD Video/Audio
Operating Temperature5 to 131°F (-15 to 55°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity5-90% Non-Condensing
Dimensions(WxDxH)Local: 13.82 x 6.10 x 1.10 in (351 x 155 x 28 mm)
Remote: 4.31 x 2.94 x 0.90 in (109.5 x 74.67 x 22.86 mm)
Weight2.2 lb (1 kg)
ApprovalsCE, FCC, RoHS
WarrantyTwo Years
