4-Port HDMI HDBase-T AV Splitter/Extender via CAT5e/6 - 328 ft.



For upgrade or replacement options: Contact Us

The VOPEX HDMI HDBase-T Splitter/Extender simultaneously distributes uncompressed HD 1080p, multi-channel audio, Ethernet, and IR from one video source to up to four displays and speakers, each located up to 328 feet away via CAT5e/6 cable using HDBase-T technology. The VOPEX system consists of two components: the HDMI HDBase-T broadcast unit, which connects to the HDMI source, and a remote unit for each remote HDMI display and speakers.

Product Features and Benefits

  • Transmits an uncompressed high speed HDMI signal over one CAT5e/6 cable to multiple display locations.
  • Features two Ethernet ports on the transmitter and receiver for connecting standard network devices such as 100Base-T routers and hubs.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1080 and 1920x1200.
  • HDMI features supported:
    • 36-bit Deep Color
    • x.v.Color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM.
    • 3D - Bandwidth up to 225 MHz (6.75 Gbps)
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Full Infrared Remote (IR) control of HDMI source from remote display.
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.

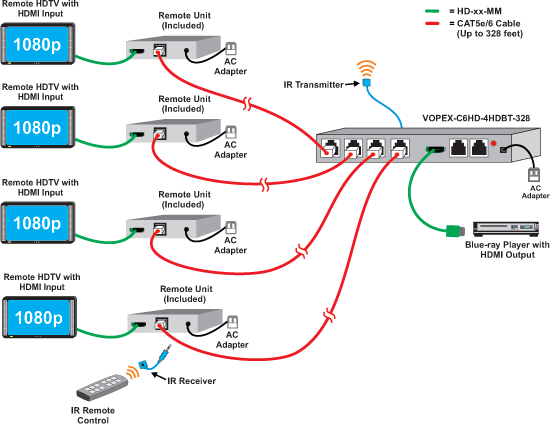

Product Diagram

Package Includes

  • HDMI HDBase-T Splitter/Extender
  • HDBase-T remote units - Four with 4-port
  • IR transmitter - One
  • IR receivers - Four with 4-port
  • One 9V power supply
  • 5V power supplies - Four
  • User manual
Local Units
Video1 x HDMI Female; Compatible with a computer or HDTV video source with HDMI output.
IR1 x 3.5mm port
Control2 x Female RJ-45 for Network Device.
Send/Recieve4 x RJ-45 for Sending/Recive HD Video/Audio
Remote Unit
ResolutionsSupports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Video1 x HDMI Female
IR2 x 3.5mm for IR Trans/Rec
Control2 x RJ-45 for Network Device
Send/Recieve1 x RJ-45 Female for Sending/Recive HD Video/Audio
Operating Temperature5 to 131°F (-15 to 55°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity5-90% Non-Condensing
Dimensions(WxDxH)Local: 13.82 x 6.10 x 1.10 in (351 x 155 x 28 mm)
Remote: 4.31 x 2.94 x 0.90 in (109.5 x 74.67 x 22.86 mm)
Weight2.2 lb (1 kg)
ApprovalsCE, FCC, RoHS
WarrantyTwo Years
Question: Can we hook this 4 port HDMI splitter/extender up to a cable box and view 4 different channels?
Answer: Thank you for your inquiry. The VOPEX-C6HD-4HDBT-328 is capable of accepting ONE(1) signal, then distributing the mirrored signal to up to four displays, similar to how a restaurant or bar displays the same sports game across multiple TV's using one cable box. You also would not be able to have four cable boxes attached either, as this unit only supports one input. A Video Matrix Switch, such as the SM-4X4-4K-LC will be able to accept FOUR(4) separate inputs, displaying on your choice of up to FOUR(4) outputs, abilities to select which input(s) display to which output(s). Note the unit mentioned does not have long extender capabilities, however we also offer Video Matrix Switches via CATx that are capable of longer runs, though at a higher cost if it is absolutely necessary. If you would like a more customized recommendation based on your application needs, please contact our highly knowledgeable team at 1-877-586-6654.
