Avocent HMX 5000 Multipoint Extension System / Matrix Over-IP KVM - Cat7 or Fiber - Single or Dual Monitor

The Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.

Truly unlimited extension distances
Extension distance is not limited to a single 100 meter cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.

Single CATx cable or fiber that prevents interference
This significant asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7.

Real time control with perfect digital video
Using a spatially-lossless encoding system, with 1:1 pixel mapping. The digital video you receive is the same as the digital video leaving the remote computer.

Security
For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.

Features

  • USB 2.0 with Class Control - Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices.
  • EDID Management - Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.
  • Plug and Play - These devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
  • Redundant Network Operation - The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.
  • Ideal for Control Rooms
    - Plug and play
    - 100m extension distance on single Catx; unlimited using standard IP network
    - 500m to 10km over fiber
    - Single link or single head configuration
    - 1920 x 1200 @ 60Hz maximum resolution
    - USB mass storage supported plus keyboard, mouse tablet and touch
    - Screen mass storage
    - Redundant network operation

Multi-Point Extension Application Diagram

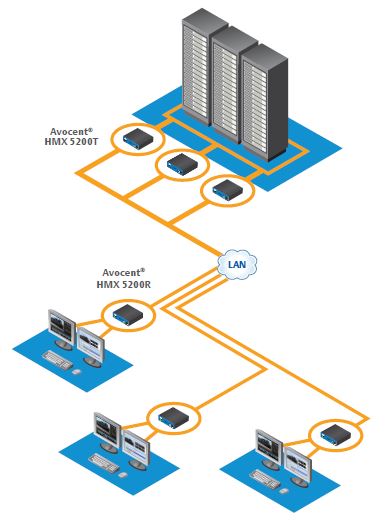

HMX 5000 Application Diagram

Multi-Point KVM-Over-IP Application Diagram (Application for 6000 series)

HMX Advanced Manager Application Diagram

Ordering Details

Part NumberDescription
HMX5100THMX TX single DVI-D, USB, audio, SFP
HMX5100RHMX RX single DVI-D, USB, audio, SFP
HMX5200THMX TX dual DVI-D, USB, audio, SFP
HMX5200RHMX RX dual DVI-D, USB, audio, SFP
HMXAMGR24-001Add up to 24 end point KVM-Over-IP Compatibility
PSC0005Power Supply HMX 5000/6000 TX/RX
LC-MM-SFPSFP Multi Mode Fiber Module LC
LC-SM-SFPSFP Multi Single Fiber Module LC
RJ45-CATX-SFP1000BASE-T Copper SFP Transceiver
RMK-9719in Rackmount kit for 2 HMX 5000/6000
RMK-8219in Rackmount kit for 1 HMX 5000/6000
RMK-8319in VESA mount kit for 1 HMX 5000/6000
