16-Port, VGA DB15 KVM w/ USB Hub

CV-1601H

$790.00
Model: CV-1601H
Ports: 16 Ports
Local Users: 1
IP Web Users: 0
Extended Users: 0 (up to 500ft away)
FREE Shipping on orders over $100

The CV-1601H is an 8-port DB-15 VGA-USB KVM Switch with USB Hubs.

CV-1601H Features & Benefits

  • VGA DB-15 KVM in 1U form
  • 2 x USB 2.0 port sharing USB peripheral for computers
  • Support resolution up to 1920 x 1080
  • Mix USB & SUN with Multi-Platform switch capability
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations

CyberView CV-1601H Highlights

  • Austin Hughes CyberView CV-1601H USB Peripheral Hub

    2-Port USB Peripheral hub

    CyberView DB-15 Hub KVMs feature two USB Peripheral hub ports that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM.

  • Austin Hughes CyberView CV-1601H Multi-platform support

    Multi-platform support

    The CyberView VGA DB-15 Hub KVM switches support any computer platform with USB or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

    Compare Cables

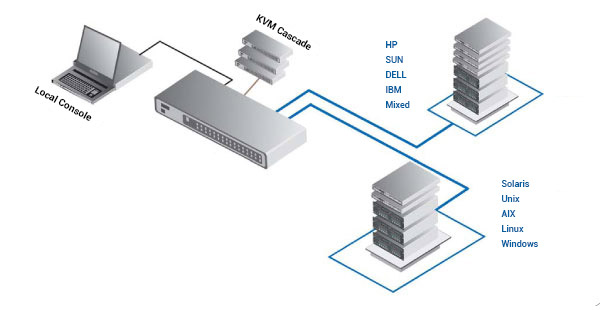

  • Austin Hughes CyberView CV-1601H multi-user diagram

    Multi-user access & management

    One local user can control 16 multi-platform servers. Advanced user profiles and configurable OSD hot key combinations allows for flexible BIOS-level remote server management.


  • Austin Hughes CyberView CV-1601H Channel selection

    Channel selection options

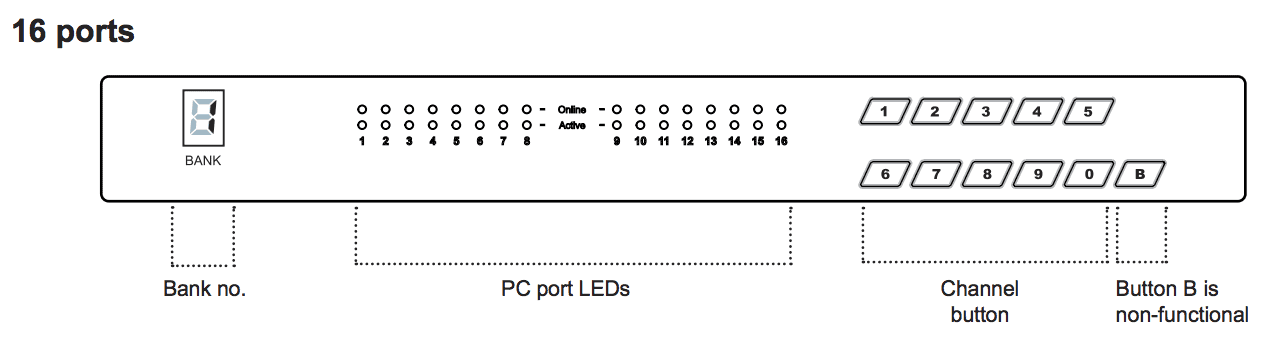

    The CyberView CV-1601H can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

  • Austin Hughes CyberView CV-1601H Hot pluggable, no software or drivers required

    Hot pluggable, no software or drivers required

    Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.

  • Austin Hughes CyberView CV-1601H DC Power

    AC power OR Optional DC power

    CyberView CV-1601H ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.


  • Austin Hughes CyberView CV-1601H Rack Mounted

    1U rack mount OR Integrate into rack drawer

    CyberView CV-1601H KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.


CV-1601H Package Contents

Austin Hughes CyberView CV-1601H Package Contents

  • (1) CV-1601H KVM Switch
  • (16) CB-6 6ft VGA USB KVM cable - for KVM
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM
    Note, DC power excludes AC power cord.
  • (1) 2-Year manufacturer warranty
  • *Please note, package contents may change with unit 'options'.

CV-1601H Resources

Austin Hughes CyberView CV-1601H Resources CV-1601H Datasheet (PDF)
CV-1601H User Manual (PDF)

CV-1601H Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (443 mm.)
Depth6.7 in. (171 mm.)
Weight6.5 lbs. (3 kg.)
Environmental
Operating / Storage Temperature0 to 55°C / -20 to 60°C
Relative Humidity20-90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz / 1G random vibration
Power100~240VAC, 50/60Hz 0.5A via IEC type cord (12V / 24V / 48V DC input option)

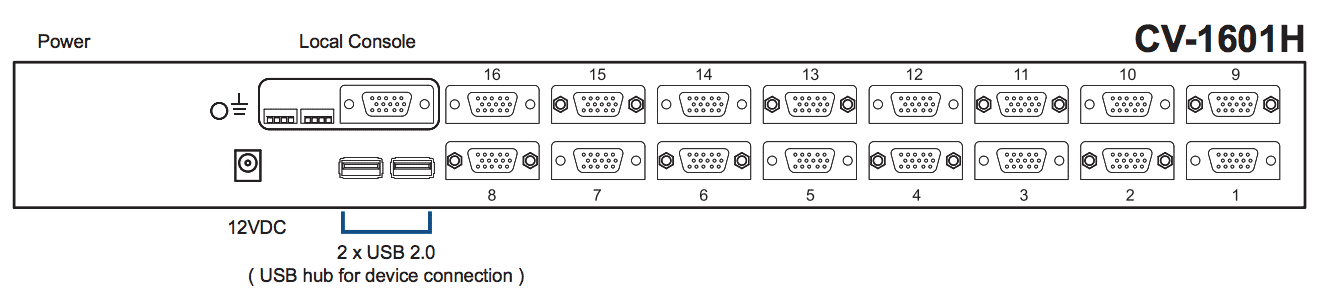

KVM Port16 x DB-15 combo connector
KVM DongleCombo 2-in-1 VGA + USB KVM cable, 6, 10 or 15 feet
Local Console
DB-15 VGA1 (up to 1920 x 1200)
USB for KB & MS2
ExpansionNone
Compatibility

HardwareMix PCs, SUNs, MACs, IBMs, HPs, DELLs server.
Operating SystemsWindows, Linux, Unix, Mac OS
Regulatory ApprovalFCC, CE, RoHS2, REACH

CV-1601H is also known as:

  • 1601H
