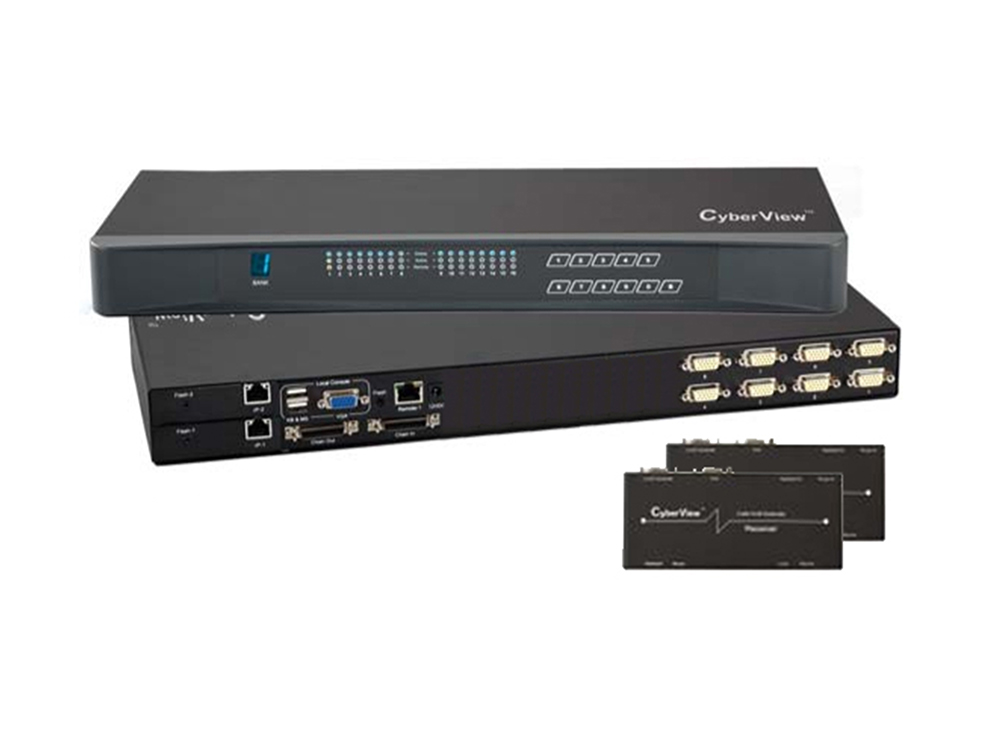

8-Port Multi-User IP KVM Switch (1 Local, 2 Remote, 1 IP)


Save $318.00
Model: M-IP814
Ports: 8 Ports
Local Users: 1
IP Web Users: 1
Extended Users: 2 (up to 500ft away)
FREE Shipping on orders over $100

The M-IP814 is an 8-port multi-user IP KVM Switch.  This matrix IP KVM features 4 consoles, 1 x local, 2 x remote via CAT6 and 1 x IP. The M-IP814 supports multiple input styles and multiple platforms. Mix and match Mix legacy PS/2 servers with newer USB and SUN solutions with the included 3-1 KVM cables (unit comes with 8 x CB-6 3-1 KVM cables) across Windows, Linux and other platforms.

With the included KVM cables, the CyberView M-IP814 is a cost effective solution for anywhere, anytime KVM over IP access for BIOS level remote server management.

M-IP814 Features & Benefits

  • Secure IP remote user access across the internet
  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 8 servers per device in 1U
  • Support resolution up to 1920 x 1080
  • SUN 1152 x 900 resolution compatible
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Extended Cat6 cable remote access of up to 150 meters
  • Provide a diversity of consoles to access servers independently and simultaneously
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Includes 2 remote receivers, mounting brackets, power adapters w/cords and 8 x CE-6 4-in-1KVM cables

CyberView M-IP814 Highlights

  • Austin Hughes CyberView M-IP814 IP Access servers from anywhere in the world

    IP Web access to severs
    (1 VNC / HTTPS User)

    Use a VNC Viewer or Java Web Browser to connect to M-IP814 servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Cat5/6 KVM Receiver for CyberView M-IP814

    Integrated CATx extenders
    (2 Remote Users)

    The M-IP814 VGA DB-15 Matrix KVM can be controlled by two users from up to 500ft (150m) away over CATx cable using the integrated CATx extenders with the included KVM receivers.

    • 1920 x 1200@60Hz (100ft)
    • 1920 x 1080@60Hz (150ft)
    • 1600 x 1200@60Hz (300ft)
    • 1280 x 1024@60Hz (500ft)
  • Austin Hughes CyberView M-IP814 Multi-platform support

    Multi-platform support

    The CyberView VGA DB-15 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

    Compare Cables

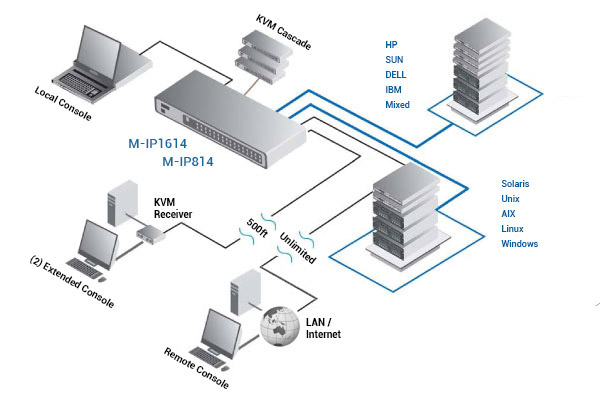

  • Austin Hughes CyberView M-IP814 multi-user diagram

    Multi-user access & management

    One local user, two extended users, and one remote IP user can control 8 multi-platform servers simultaneously. Up to 15 different IP user profiles can be stored with personal settings for each user defined.

  • Austin Hughes CyberView M-IP814 Channel selection

    Channel selection options

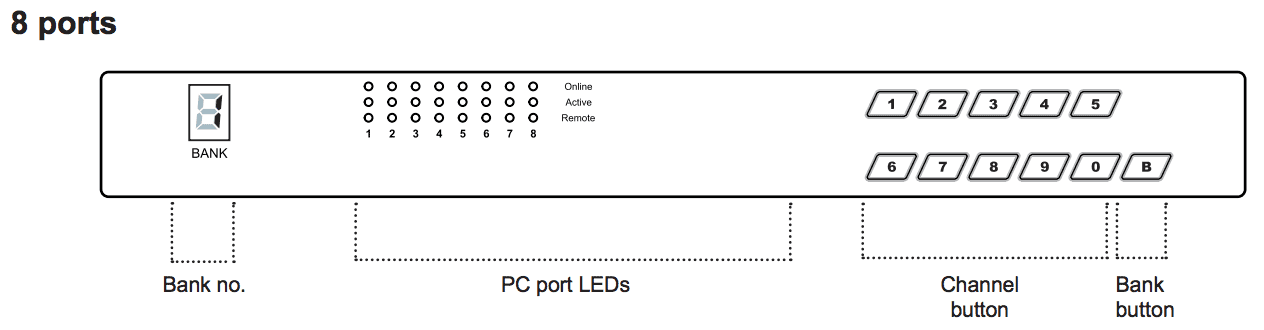

    The CyberView M-IP814 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

  • Austin Hughes CyberView M-IP814 Hot pluggable, no software or drivers required

    Hot pluggable, no software or drivers required

    Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.

  • Austin Hughes CyberView M-IP814 VGA DB-15 Matrix Cascade cable

    Easy Expansion
    (Cascading Units)

    Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVM units using CMC-8 cables. The M-IP814 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of M-802 / M-1602 or MU-1602 / MU-3202 KVM switches.

  • Austin Hughes CyberView M-IP814 DC Power

    AC power OR Optional DC power

    CyberView M-IP814 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.

  • Austin Hughes CyberView M-IP814 Rack Mounted

    1U rack mount OR Integrate into rack drawer

    CyberView M-IP814 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.

M-IP814 Package Contents

Austin Hughes CyberView M-IP814 Package Contents

  • (1) M-IP814 KVM Switch
  • (8) CB-6 6ft VGA USB KVM cable - for KVM
    optional CE-6 VGA PS/2 KVM Cables available upon request
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM
    Note, DC power excludes AC power cord.
  • (2) KVM receiver for extended console
  • (2) Power adapter w/ US power cord - for receiver
  • (2) CB-6 6ft VGA USB KVM cable - for receiver
  • (1) 2-Year manufacturer warranty
  • *Please note, package contents may change with unit 'options'.

M-IP814 Specifications

Height 1.72 in. (43.6 mm.)
Width 17.4 in. (443 mm.)
Depth6.7 in. (171 mm.)
Weight6.5 lbs. (3 kg.)
Operating Temperature0 to 50°C
Storage:-5 to 60°C
Relative Humidity90%, non-condensing
Shock50G peak acceleration
(11 ms, half-sine wave)
Vibration58~100Hz / 0.98G (11 ms/cycle)
InputAC power adapter
ConsumptionMax. 48 Watts, Standby 5 Watts

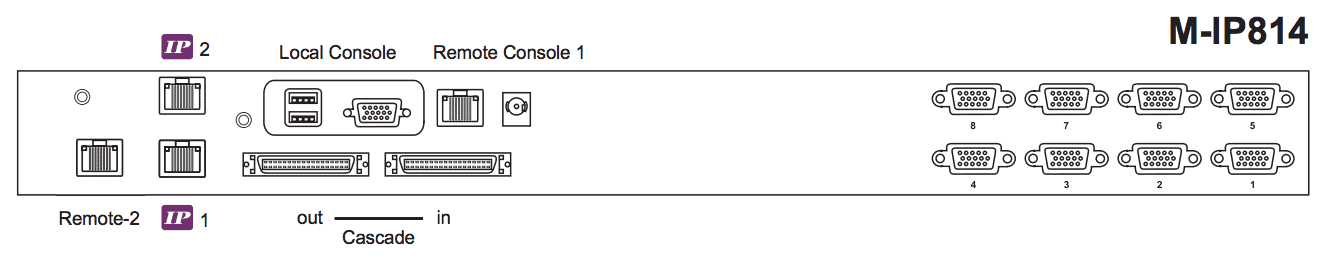

KVM Port8 x DB-15 Combo Connector
KVM ConnectivityCombo 4-in-1 KVM cable
6, 10 & 15 feet (CE-6, CE-10, CE-15)
Simultaneous Console Access
Local1 x DB-15 VGA
(up to 1920 x 1080/1920 x 1200),
2 x USB for KB & MS
Remote x 22 x RJ45, up to 500ft (150 meters) via
CAT5/CAT5e/CAT6 cable
IP Access1 x RJ45 Ethernet Ports
IP SecuritySSL v3, RSA, AES, HTTP / HTTPs, CSR
15-user logins (1 x active user)
Remote Receiver x 21 x DB-15 VGA (up to 1600 x 1200),
2 x USB for KB & MS,
1 x KVM port for connecting local PC
ExpansionSupport for up to 240 servers - requires
M-802/M-1602 or MU-1602/MU-3202
CompatibilityMix PCs, SUNs, MACs, IBMs, HPs, DELLs server
Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Regulatory ApprovalcUL, FCC, CE

M-IP814 is also known as:

  • MIP814
  • MIP-814
