The M-IP824 is an 8-port multi-user IP KVM Switch. This matrix IP KVM features 4 consoles, 1 x local, 1 x remote via CAT6 and 2 x IP. The M-IP824 supports multiple input styles and multiple platforms. Mix and match Mix legacy PS/2 servers with newer USB and SUN solutions with the included 3-1 KVM cables (unit comes with 8 x CB-6 3-1 KVM cables) across Windows, Linux and other platforms.
With the included KVM cables, the CyberView M-IP824 is a cost effective solution for anywhere, anytime KVM over IP access for BIOS level remote server management.
M-IP824 Features & Benefits
- Secure IP remote user access across the internet
- Efficient system management with simultaneous multi-user access
- Capable of connecting 8 servers per device in 1U
- Support resolution up to 1920 x 1080
- SUN 1152 x 900 resolution compatible
- Multi-platform servers shared by different consoles in cascade connection
- Mix PS/2, USB & SUN with Multi-Platform switch capability
- Extended Cat6 cable remote access of up to 150 meters
- Provide a diversity of consoles to access servers independently and simultaneously
- Multi-lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
- Includes remote receiver, mounting brackets, power adapters w/cords and 8 x CE-6 4-in-1KVM cables

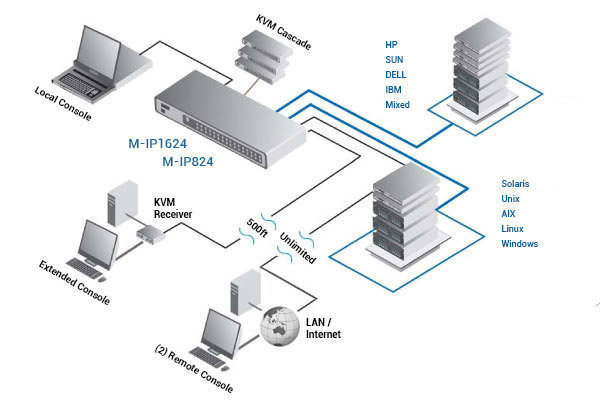

M-IP824 Layout

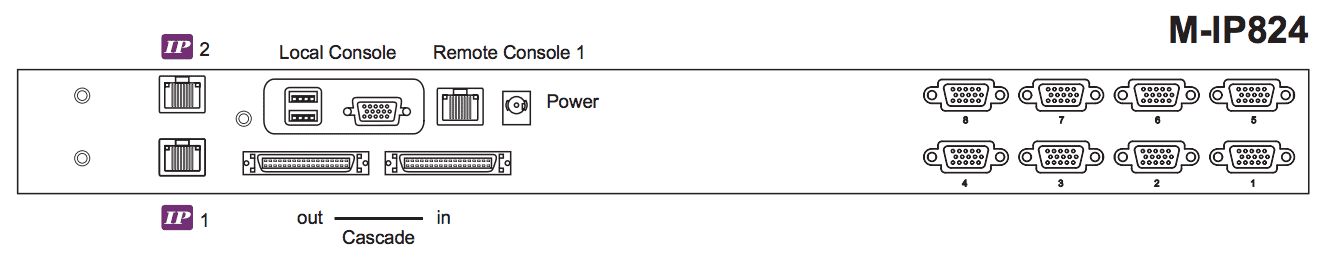

M-IP824 Rear Diagram

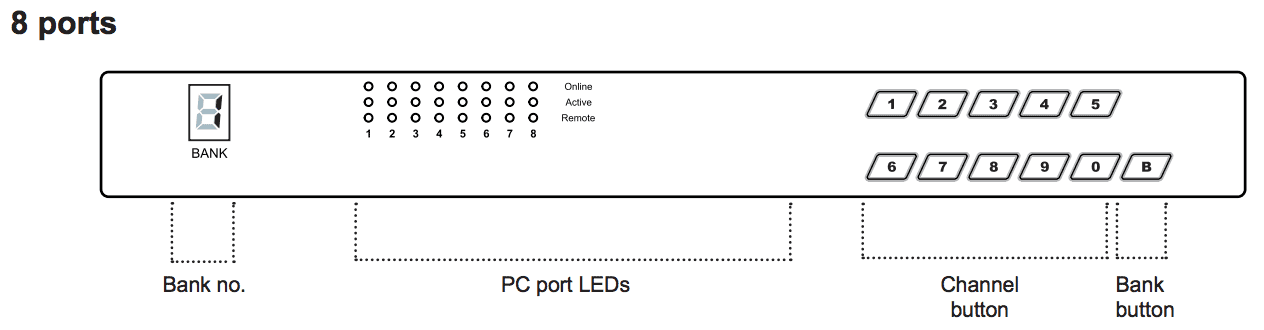

M-IP824 Front DiagramCyberView M-IP824 Highlights
IP Web access to severs
(2 VNC / HTTPS Users)
Use a VNC Viewer or Java Web Browser to connect to M-IP824 servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.
Integrated CATx extender
(1 Remote User)
The M-IP824 VGA DB-15 Matrix KVM can be controlled by one user from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.
- 1920 x 1200@60Hz (100ft)
- 1920 x 1080@60Hz (150ft)
- 1600 x 1200@60Hz (300ft)
- 1280 x 1024@60Hz (500ft)
Multi-platform support
The CyberView VGA DB-15 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.
Compare Cables
Multi-user access & management
One local user, one extended user, and two remote IP users can control 8 multi-platform servers simultaneously. Up to 15 different IP user profiles can be stored with personal settings for each user defined.
Channel selection options
The CyberView M-IP824 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.
Hot pluggable, no software or drivers required
Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.
Easy Expansion
(Cascading Units)
Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVM units using CMC-8 cables. The M-IP824 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of M-802 / M-1602 or MU-1602 / MU-3202 KVM switches.
AC power OR Optional DC power
CyberView M-IP824 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.
CyberView M-IP824 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.
Computer Interface Module (CIM) for CyberView VGA DB-15 KVM
Part # | Length | Keyboard & Mouse | Video |
---|
CE-6 | 6ft | USB or PS2 | VGA |
---|
CE-10 | 10ft | USB or PS2 | VGA |
---|
CE-15 | 15ft | USB or PS2 | VGA |
---|
CB-6 | 6ft | USB | VGA |
---|
CB-10 | 10ft | USB | VGA |
---|
CB-15 | 15ft | USB | VGA |
---|

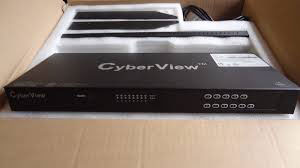

M-IP824 Package Contents

- (1) M-IP824 KVM Switch
- (8) CB-6 6ft VGA USB KVM cable - for KVM
optional CE-6 VGA PS/2 KVM Cables available upon request - (1) 1U, 19" Rack mount kit w/ brackets & screws
- (1) Power adapter w/ US power cord - for KVM
Note, DC power excludes AC power cord. - (1) KVM receiver for extended console
- (1) Power adapter w/ US power cord - for receiver
- (1) CB-6 6ft VGA USB KVM cable - for receiver
- (1) 2-Year manufacturer warranty
- *Please note, package contents may change with unit 'options'.
M-IP824 Specifications
Mechanical | |
Height | 1.72 in. (43.6 mm.) |
Width | 17.4 in. (443 mm.) |
Depth | 6.7 in. (171 mm.) |
Weight | 6.5 lbs. (3 kg.) |
Environmental | |
Operating Temperature | 0 to 50°C |
Storage: | -5 to 60°C |
Relative Humidity | 90%, non-condensing |
Shock | 50G peak acceleration (11 ms, half-sine wave) |
Vibration | 58~100Hz / 0.98G (11 ms/cycle) |
Power | |
Input | AC power adapter |
Consumption | Max. 48 Watts, Standby 5 Watts |
KVM Port | 8 x DB-15 Combo Connector |
KVM Connectivity | Combo 4-in-1 KVM cable 6, 10 & 15 feet (CE-6, CE-10, CE-15) |
Simultaneous Console Access | |
Local | 1 x DB-15 VGA (up to 1920 x 1080/1920 x 1200), 2 x USB for KB & MS |
Remote | 1 x RJ45, up to 500ft (150 meters) via CAT5/CAT5e/CAT6 cable |
IP Access x 2 | 2 x RJ45 Ethernet Ports |
IP Security | SSL v3, RSA, AES, HTTP / HTTPs, CSR 15-user logins (1 x active user per port) |
Remote Receiver | 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS, 1 x KVM port for connecting local PC |
Expansion | Support for up to 240 servers - requires M-802/M-1602 or MU-1602/MU-3202 |
Compatibility | Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix |
Regulatory Approval | cUL, FCC, CE |
M-IP824 is also known as:
Question: How many users could be logged in/connected to the KVM at a time?
Answer: Thank you for your inquiry,
The M-IP824 KVM concurrently supports 1 x local user, 1 x extended user (via CAT6 user station included), and 2 x users over IP (web browser access). For application diagrams detailing the user connections, please refer to the
M-IP824 page.
You can also find all related
Cyberview KVMs here with different user and port amounts.
If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative directly at 1-877-586-6654, at sales@kvm-switches-online.com, or via our online Chat functionality. The part number would be different for the internation versions.
