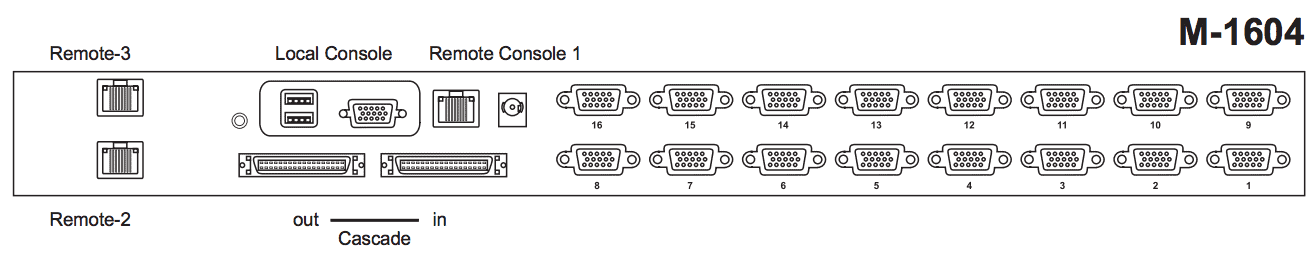

16-Port Matrix KVM (3 Remote/1 Local User)

M-1604

$1,857.00
Model: M-1604
Ports: 16 Ports
Local Users: 1
IP Web Users: 0
Extended Users: 3 (up to 500ft away)
FREE Shipping on orders over $100

The M-1604 is a 16-Port Matrix Multi-user DB-15 KVM Switch. This matrix KVM switch features 4 consoles, 1 x local and 3 x remote.

Matrix DB-15 KVM Benefits

  • Efficient system management with simultaneous multi-user access
  • Support resolution up to 1920 x 1080
  • SUN 1152 x 900 resolution compatible
  • Multi-platform servers shared by different consoles in cascade connection
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Extended Cat6 cord remote access up to 150 meters
  • Provide a diversity of consoles to access servers independently & simultaneously

Switch Features & Options

  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations

CyberView M-1604 Highlights

  • Cat5/6 KVM Receiver for CyberView M-1604

    Integrated CATx extenders
    (3 Remote Users)

    The M-1604 VGA DB-15 Matrix KVM can be controlled by three users from up to 500ft (150m) away over CATx cable using the integrated CATx extenders with the included KVM receivers.

    • 1920 x 1200@60Hz (100ft)
    • 1920 x 1080@60Hz (150ft)
    • 1600 x 1200@60Hz (300ft)
    • 1280 x 1024@60Hz (500ft)
  • Austin Hughes CyberView M-1604 Multi-platform support

    Multi-platform support

    The CyberView VGA DB-15 Matrix KVM switches support any computer platform with USB, PS/2, or Sun keyboard and mouse interfaces, including all versions of Windows, Mac, Linux & SUN systems.

    Compare Cables

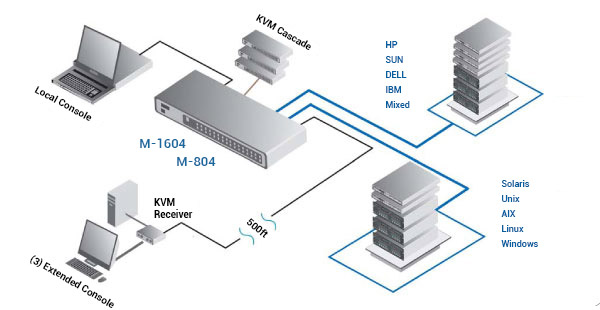

  • Austin Hughes CyberView M-1604 multi-user diagram

    Multi-user access & management

    One local user and three extended users can control 16 multi-platform servers simultaneously. Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVMs.


  • Austin Hughes CyberView M-1604 Channel selection

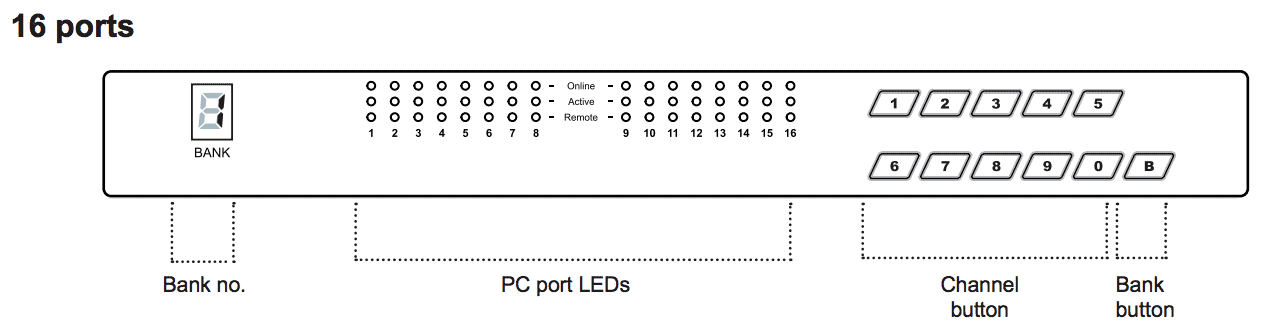

    Channel selection options

    The CyberView M-1604 can be switched using selectable keyboard hotkeys, front-panel push buttons, or with a mouse through an on-screen-display (OSD). These switching options allow you to quickly reassign connected devices to any of the connected computers.

  • Austin Hughes CyberView M-1604 Hot pluggable, no software or drivers required

    Hot pluggable, no software or drivers required

    Add PCs or remove connected PCs for maintenance without powering down the KVM switch or PCs. CyberView KVMs are designed to be driver & software-free.

  • Austin Hughes CyberView M-1604 VGA DB-15 Matrix Cascade cable

    Easy Expansion
    (Cascading Units)

    Expand up to 256 source computers simply by linking VGA DB-15 Matrix KVM units using CMC-8 cables. The M-1604 KVM automatically detects up to 8 levels of cascade connections, which can be made up of a mix of M-802 / M-1602 or MU-1602 / MU-3202 KVM switches.


  • Austin Hughes CyberView M-1604 DC Power

    AC power OR Optional DC power

    CyberView M-1604 ships with 100-240V AC power. Alternatively, customers can also get 12V / 24V / 48V / 110V / 125V / 250V DC power input, integrated into the KVM.

  • Austin Hughes CyberView M-1604 Rack Mounted

    1U rack mount OR Integrate into rack drawer

    CyberView M-1604 KVM switch can be rack mounted into 1U of space (rack brackets included), or it can be purchased integrated into a CyberView Rack Console. Small size also makes the units ideal for mounting behind third-party rack console.


M-1604 Package Contents

Austin Hughes CyberView M-1604 Package Contents

  • (1) M-1604 KVM Switch
  • (16) CB-6 6ft VGA USB KVM cable - for KVM
    optional CE-6 VGA PS/2 KVM Cables abailable upon request
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) Power adapter w/ US power cord - for KVM
    Note, DC power excludes AC power cord.
  • (3) KVM receiver for extended console
  • (3) Power adapter w/ US power cord - for receiver
  • (3) CB-6 6ft VGA USB KVM cable - for receiver
  • (1) 2-Year manufacturer warranty
  • *Please note, package contents may change with unit 'options'.

M-1604 Resources

Austin Hughes CyberView M-1604 Resources M-1604 Datasheet (PDF)
M-1604 Manual (PDF)

M-1604 Specifications

KVM Port
Number of ports16
ConnectorDB-15 combo connector
ConnectivityCombo 4-in-1 KVM cable (up to 6, 10 and 15ft)
Local Console
Monitor Port1 x DB-15 VGA ( Up to 1920 x 1080 / 1920 x 1200 )
Keyboard/Mouse2 x USB type connector for keyboard & mouse
Cat6 Remote Console
Number Of Remote Ports3
Monitor PortB15-pin VGA ( Up to 1600 x 1200 )
Keyboard/Mouse Port2 x USB type connector for keyboard & mouse
Remote I/ORJ45 via Cat5 / Cat5e / Cat6 cable up to 500 feet
ExpansionUp to 240 servers by 8-level cascade
Compatibility
Multi-platformMix PCs, SUN and Mac G3 / G4 Mac / iMac
SupportWindows 7 / Vista / 2003 / XP, Linux, Unix
Power
InputAC Power Adapter
ConsumptionMax. 48 Watt, Standby 5 Watt
Regulatory
SafetyUL, FCC & CE certified
EnviromentRoHS2 & REACH compliant
Mechanical
Height 1.73 in. (4.4 cm.)
Width 17.4 in. (44.3 cm.)
Depth6.7 in. (17.1 cm.)
Weight6.5 lbs. (3.0 kg.)
Package Dimensions (HxWxD)19.7 x 15.7 x 3.5 inch
(500 x 400 x 90 mm)
Package Weight11.0 lbs. (5.0 kg.)
Environmental
Operating Temperature0 to 50°C Degree
Storage Temperature-5 to 60°C Degree
Relative Humidity90%, non-condensing
Shock 50G acceleration (11ms, half sine wave)
Vibration8~100Hz / 0.98G (11ms / cycle)

M-1604 Hot Key Sequences

FunctionHot Key Sequence
Calling OSD Menu[Scr Lock] [Scr Lock] [Space Bar]
Right Mouse + [Esc]
Previous Port[Scr Lock] [Scr Lock] [Up]
Next Port[Scr Lock] [Scr Lock] [Down]
Previous/Next Bank[Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port[Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off[Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On)[Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode[Scr Lock] [Scr Lock] [S]
Reset Factory Defualts[Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security[Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving[Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port[Scr Lock] [Scr Lock] [C]
Buzzer On/Off[Scr Lock] [Scr Lock] [Q]
AutoScan Mode[Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal[Scr Lock] [Scr Lock] [A]
