Iogear 17" LCD Rackmount with Integrated 8-port KVM w/ PS/2 KVM Cables


FREE Shipping on orders over $100

IOGEAR's GCL1808KITP is an integrated 17" LCD console and 8 port KVM (keyboard, video, and mouse) switch with bundled PS/2 KVM cables that offers secure access to 8 VGA, PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.

The GCL1808KITP supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1808KITP supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1808KITP can control up to 8 computers. As many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and Hotkeys.

IOGEAR's GCL1808KITP Benefits & Features:

  • Integrated 8-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x1024 resolution on 17" rack mount LCD provides a sharp video display
  • Equipped with8 PS/2 KVM Cables
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
  • Easy to operate - computer selection via front panel pushbutton LED's, intuitive OSD (on screen display), and hotkeys
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • USB media port support for attached USB computers (system upgrades, etc)**
  • Cascade up to 2 levels - control up to128 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B
  • Warranty: 3-YEAR
    *Cascade with IOGEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
    **Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

IOGEAR's GCL1808KITP Requirements:

  • VGA, SVGA, or Multi Sync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
  • PC Compatible, MAC, Sun Compatible, Linux Compatible, RoHS Compliant

IOGEAR's GCL1808KITP Package Contents:

  • 1 x 8-Port LCD Combo KVM Switch
  • 4 x PS/2 KVM Cable (6ft - G2L5202P)
  • 4 x PS/2 KVM Cable (10ft - G2L5203P)
  • 1 x USB KVM Cable (6ft - G2L5202U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Warranty Card

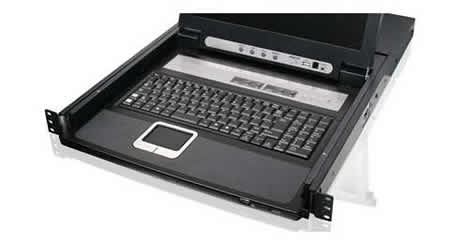

IOGEAR GCL1808KITP Keyboard View



IOGEAR's GCL1808KITP Specifications:

Operational Temperature 32~ 104°F [0°~40°C]
Storage Temperature -4~140°F [-20°~60°C]
Humidity 0~80% RH, Non-condensing
Physical Properties

Housing Metal and Plastic
Unit Dimensions

19 in. (48.3 cm.)

Height 1.75 in. (4.4 cm.)
Depth 25 in. (63.5 cm.)
Unit Package Dimensions


30.25 in. (76.8 cm.)
Height 6.5 in. (16.5 cm.)
Depth 37.25 in. (94.6 cm.)
Unit Pack Wt 51.63 lbs. (23.5 kg.)
Unit Wt. w/ accessories 36.67 lbs. (16.7 kg.)
Unit Wt 27.78 lbs. (12.6 kg.)
Computer Connections

Direct 8
Daisy Chain or Cascading 128
Port Selections OSD, Hotkeys, Pushbuttons
Console 1 x SPHD-18 Male
Power 1 x 3-Prong AC Socket
Console Connectors
Monitor 1 x HDB-15 Female
Keyboard PS/2 or USB
Mouse PS/2 or USB
Extra Mouse 1 x USB Type A Female
Flash ROM Upgrade 1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor 8 x SPHD-15 Female


Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch
F/W Upgrade 1 x Switch
LCD Adjustment 4 x Pushbutton
LCD Power 1 x LED Pushbutton (Orange)
Port Selection

4 x Pushbutton
OnLine 8 (Orange)
Port ID 4 x 7 Segment LED Display (Yellow)
Power On Dark Green
Keyboard PS/2, USB


Video Resolution

1280 x 1024 @75Hz; DDC2B
Scan Interval
1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz 100~240VAC. 50/60Hz, 1A
Power Consumption 120V, 28W


UPC / EAN Barcode icon
UPC 881317506412
EAN 0881317506412
