Iogear 17" LCD Rackmount with Integrated 16-port KVM w/ USB & PS/2 KVM Cables

GCL1816KIT

$1,879.95$1,499.99
Save $379.96
FREE Shipping on orders over $100

The GCL1816KIT is 17" LCD and integrated 16 port KVM Switch that supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KIT supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KIT can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.

IOGEAR's GCL1816KIT Benefits & Features:

  • Equipped with USB & PS/2 KVM Cables
    - 4 x 6ft USB & 4 x 6ft PS/2 (G2L5202U / G2L5202P)
    - 4 x 10ft USB & 4 x 10ft PS/2 (G2L5203U / G2L5203P)
  • Increases space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy / efficient way to organize and streamline a growing or expanding server operation
  • Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x1024 resolution on 17" rack mount LCD provides a sharp video display
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
  • Easy to operate - computer selection via front panel pushbutton LED's, intuitive OSD (on screen display), and hotkeys
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • USB media port support for attached USB computers (system upgrades, etc)**
  • Cascade up to 2 levels - control up to256 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B
  • Warranty: 3-YEAR
    *Cascade with IGOEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
    **Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

IOGEAR's GCL1816KIT Requirements:

  • VGA, SVGA, or Multi Sync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
  • PC Compatible, MAC, Sun Compatible, Linux Compatible, RoHS Compliant

IOGEAR's GCL1816KIT Package Contents:

  • 1 x 16-Port LCD Combo KVM Switch
  • 4 x PS/2 KVM Cable (6ft - G2L5202P)
  • 4 x PS/2 KVM Cable (10ft - G2L5203P)
  • 4 x USB KVM Cable (6ft - G2L5202U)
  • 4 x USB KVM Cable (10ft - G2L5203U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Warranty Card

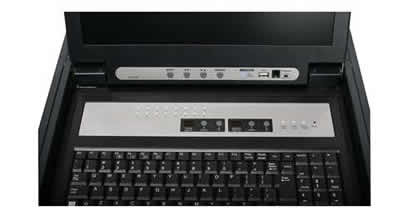

IOGEAR 1816KIT Keyboard
IOGEAR GCL1816KIT Keyboard

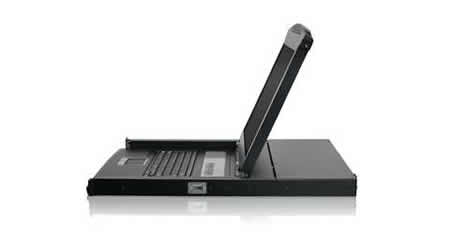

IOGEAR GCL1816KIT Side
IOGEAR GCL1816KIT Side View

IOGEAR GCL1816KIT Back
IOGEAR GCL1816KIT Back
View

IOGEAR's GCL1816KIT Specifications:

Computer Connections


Direct 16
Daisy Chain or Cascading 256
Port Selections OSD, Hotkeys, Pushbuttons
Connectors
Console 1 x HDB-15 Female
Power 1 x 3-Prong AC Socket
Console Connectors
Monitor 1 x HDB-15 Female
Keyboard PS/2 or USB
Mouse PS/2 or USB
Extra Mouse 1 x USB Type A Female
Flash ROM Upgrade 1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor 16 x SPHD-15 Female
Switches



Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch
F/W Upgrade 1 x Switch
LCD Adjustment 4 x Pushbutton
LCD Power 1 x LED Pushbutton (Orange)
Port Selection

4 x Pushbutton
LEDs
OnLine 16 (Orange)
Port ID 4 x 7 Segment LED Display (Yellow)
Power On Dark Green
Emulation
Keyboard PS/2, USB
Mouse

PS/2, USB

Video Resolution

1280 x 1024 @75Hz; DDC2B
Scan Interval
1-255 Seconds
Power Input Rating

Per AC Power Inlet, 50/60Hz 100~240VAC. 50/60Hz, 1A
Power Consumption 120V, 28W
Environment

Operational Temperature 32~ 104°F [0°~40°C]
Storage Temperature -4~140°F [-20°~60°C]
Humidity 0~80% RH, Non-condensing
Physical Properties


Housing Metal and Plastic
Unit Dimensions
Width

19 in (48.3)

Height 1.75 in (4.4 cm)
Depth 25 in (63.5)
Unit Package Dimensions

Width

30.25 in (76.8 cm)
Height 6.5 in (16.5 cm)
Depth 37.25 in (94.6 cm)
Weight
Unit Pack Wt 55.96 lbs (25.4 kg)
Unit Wt. w/ accessories 41.92 lbs (19.1 kg)
Unit Wt 29.03 lbs (13.2 kg)




UPC / EAN Barcode icon
UPC 881317506429
EAN 0881317506429
