Iogear 17" LCD Rackmount with Integrated 16-port KVM w/ PS/2 KVM Cables

GCL1816KITP

$1,879.95$1,499.99
Save $379.96
FREE Shipping on orders over $100

IOGEAR's GCL1816KITP is an integrated 17" LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled PS/2 KVM cables that offers secure access to 16 VGA, PS/2 computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.

The GCL1816KITP supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KITP supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KITP can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.

IOGEAR's GCL1816KITP Features:

  • Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x1024 resolution on 17" rack mount LCD provides a sharp video display
  • Equipped with16 PS/2 KVM Cables (8 x 6ft PS/2 (G2L5202P), 8 x 10ft PS/2 (G2L5203P) )
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support - Windows¨, Mac, Sun Solarisª , and Linux¨
  • Easy to operate - computer selection via front panel pushbutton LED's, intuitive OSD (on screen display), and hotkeys
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • USB media port support for attached USB computers (system upgrades, etc)**
  • Cascade up to 2 levels - control up to256 computers from a single console*
  • Security - 2 level password protection for OSD
  • DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Increases space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy / efficient way to organize and streamline a growing or expanding server operation
  • Fully Supports DDC2B
  • Warranty: 3-YEAR

IOGEAR's GCL1816KITP Requirements:

  • VGA, SVGA, or Multi Sync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
  • PC Compatible, MAC, Sun Compatible, Linux Compatible, RoHS Compliant

IOGEAR's GCL1816KITP Package Contents:

  • 1 x 16-Port LCD Combo KVM Switch
  • 8 x PS/2 KVM Cable (6ft - G2L5202P)
  • 8 x PS/2 KVM Cable (10ft - G2L5203P)
  • 1 x USB KVM Cable (6ft - G2L5202U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Power Cord
  • 1 x Installation Guide
  • 1 x Warranty Card

NOTES: *Cascade with IOGEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

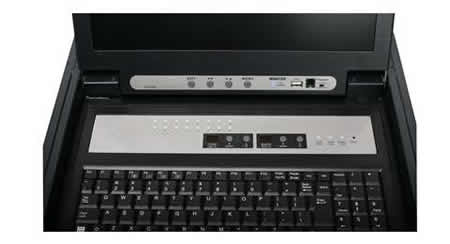

iogear-gcl1816kitp-keyboard
IOGEAR GCL1816KITP Keyboard

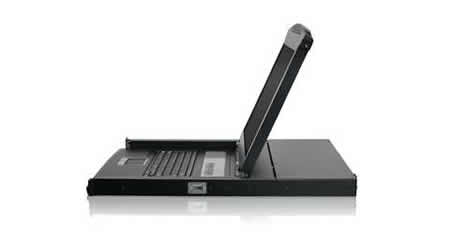

IOGEAR gcl1816kitp SIDE
IOGear GCL1816KITP Side View

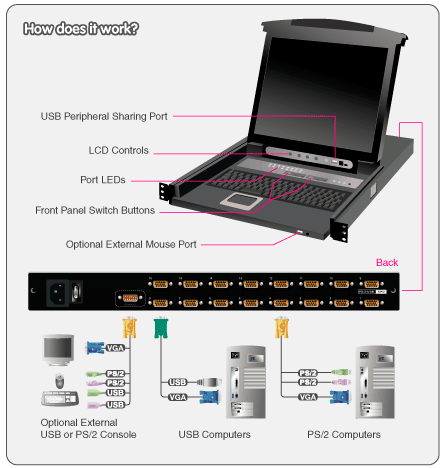

IOGear LCD Combo KVM Switch Function Diagram
IOGear LCD Combo KVM Switch Function Diagram

IOGEAR's GCL1816KITP Specifications:

Mechanical
Height 1.75 in. (44.45 mm.)
Width 19 in. (483 mm.)
Depth 25 in. (635 mm.)
Weight 29.03 lbs. (13.17 kg.)
Environmental
Operating Temperature 0~40°C
Storage Temperature -20~60°C
Humidity 0~80% RH; Non-condensing
Power
Power Input Rating Per AC Power Inlet, 50/60Hz: 100~240VAC. 50/60Hz, 1A
Power Consumption 120V, 28W
Computer Connections
Direct 16
Daisy Chain or Cascading 256
Port Selection OSD, Hotkeys, Pushbuttons
Connectors
Console 1 x SPHD-18 Male
Power 1 x 3-Prong AC Socket
Console Connectors
Monitor 1 x HDB-15 Female
Keyboard PS/2 or USB
Mouse PS/2 or USB
Extra Mouse 1 x USB Type A Female
Flash ROM Upgrade 1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor 16 x SPHD-15 Female
Switches
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker Switch
F/W Upgrade 1 x Switch
LCD Adjustment 4 x Pushbutton
LCD Power 1 x LED Pushbutton (Orange)
Port Selection 4 x Pushbutton
LEDs
On Line 16 (Orange)
Port ID 4 x 7 Segment LED Display (Yellow)
Power On Dark Green
Emulation
Keyboard PS/2, USB
Mouse PS/2, USB
Video Resolution 1280 x 1024 @ 75Hz; DDC2B
Scan Interval 1-255 Seconds
Housing
Case Metal and Plastic
UPC / EAN Barcode icon
UPC 881317506443
EAN 0881317506443
